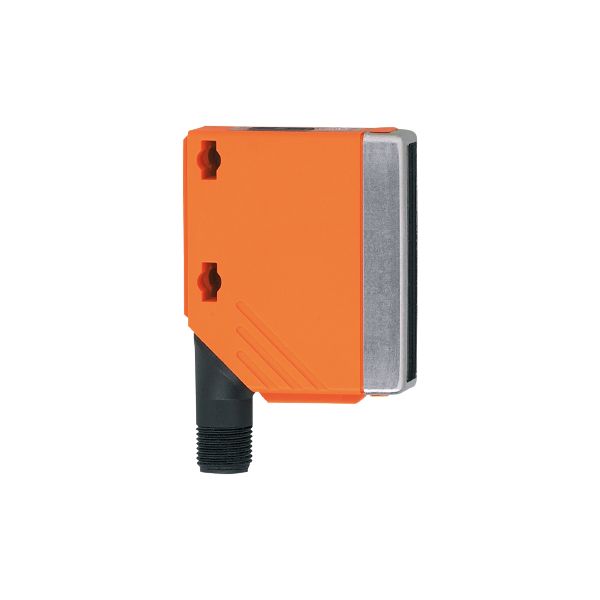

O5G501 - efector200-O5PGFAKG/US
Brand: IFM Electronic
Code: O5G501
- Reliable detection of glass, film, PET bottles and transparent packaging
- High switching frequency for fast processes
- Simple alignment due to visible red light
- Extensive range of fixing components
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Special feature | polarisation filter; Function check output |
|---|---|
| Function principle | Retro-reflective sensor |
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 624 |
Outputs
| Electrical design | PNP/NPN; (automatic load detection PNP/NPN) |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Function check output | yes |
| Max. voltage drop of function check output [V] | 2.5 |
| Max. current load for function check output [mA] | 50 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1500 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range referred to prismatic reflector [m] | 0...3; (Prismatic reflector 100 x 100 mm E20454) |
|---|---|
| Range adjustable | yes |
| Max. light spot diameter [mm] | 80 |
| Light spot dimensions refer to | at maximum range |
| Polarisation filter available | yes |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 73.5 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 56 x 18.2 x 46.8 | |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPU | |
| Lens material |
| |
| Lens alignment | side lens |
Displays / operating elements
| Display |
| ||||
|---|---|---|---|---|---|
| Teach function | yes | ||||
| Electronic lock | yes |
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Diagrams and graphs
| excess gain graph | |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O5G501-00 — 13.04.2023 —
