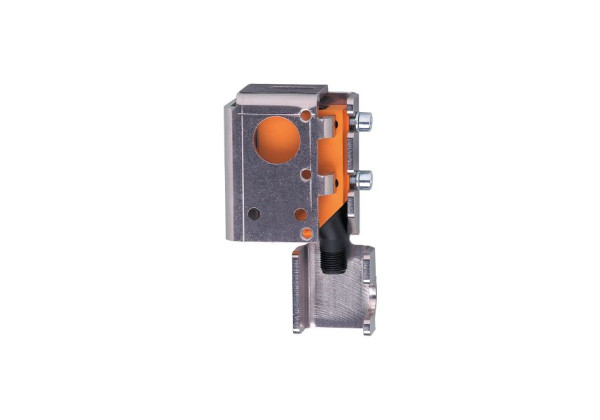

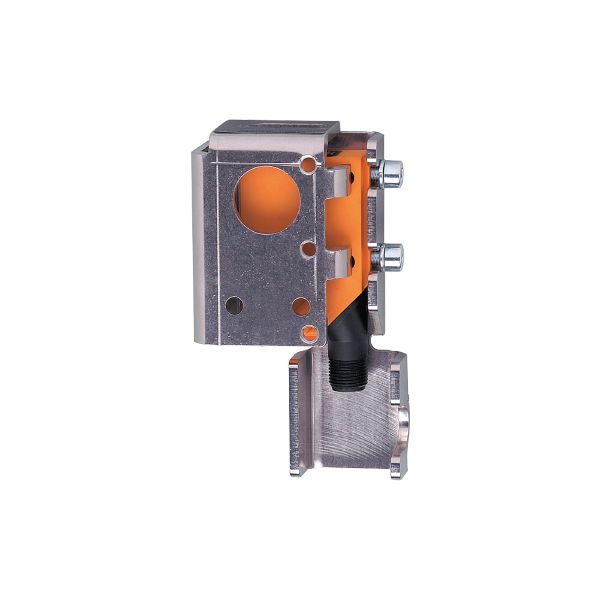

O5S51A - efector200-O5S-OOKG/US100/3D
Brand: IFM Electronic
Code: O5S51A
- For applications in hazardous areas
- Robust housing with stainless steel protective bracket
- Very long range
- Clearly visible indication of the readiness for operation
- Extensive range of fixing components
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC; (when used outside the hazardous area: 10...36) |
|---|---|
| Current consumption [mA] | 20 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | < 25 |
| Range adjustable | no |
| Max. light spot diameter [mm] | 625 |
Operating conditions
| Ambient temperature [°C] | -10...50 | |
|---|---|---|
| Note on ambient temperature |
| |
| Protection | IP 65 |
Tests / approvals
| ATEX marking | | ||
|---|---|---|---|
| EMC |
| ||
| MTTF [years] | 617 |
Mechanical data
| Weight [g] | 332.5 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 105 x 30 x 62 | |
| Materials | housing: PA; bezel: stainless steel; operator interface: TPU; Protective bracket: stainless steel | |
| Lens material |
| |
| Lens alignment | side lens |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — O5S51A — 15.12.2008 —
