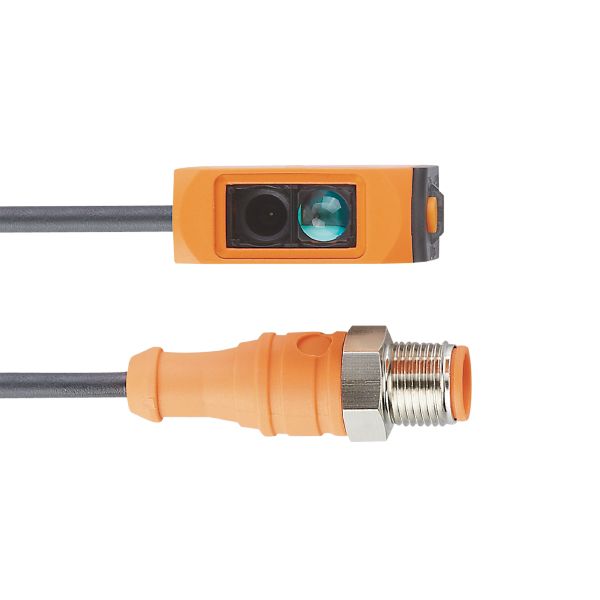

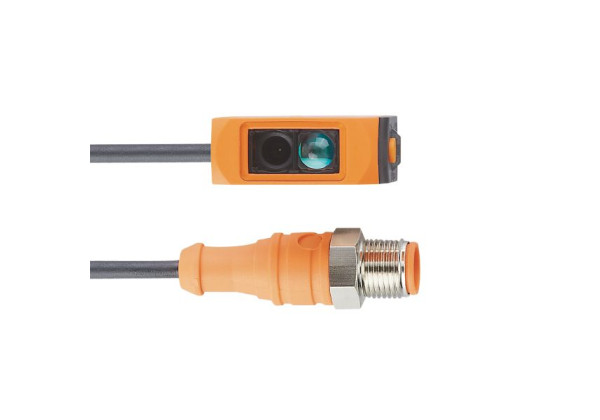

O6E701 - O6ELFPKG/0,30m/US

Code: O6E701

Particularly compact housing for use where space is restricted
Very long range independent of the object colour
Intuitive setting of the sensitivity via potentiometer
User-friendly selection of light-on or dark-on via rotary switch
Excellent price/performance ratio

Product characteristics

Type of light	red light
Housing	rectangular

Application

Function principle	Through-beam sensor

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	13; (24 V)
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	650

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode; (selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Type of short-circuit protection	pulsed

Detection zone

Transmitter / receiver	receiver
Range [m]	15
Diameter of the smallest detectable object [mm]	7; (15 m)

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel

SIO mode

yes

Required master port type

Min. process cycle time [ms]

2.5

IO-Link process data (cyclical)

function	bit length
process value	8
device status	4
binary switching information	1

IO-Link functions (acyclical)

application specific tag; operating hours counter; switching cycles counter

Supported DeviceIDs

Type of operation	DeviceID
Default	524

Operating conditions

Ambient temperature [°C]	-10...60
Protection	IP 65; IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

1168

Mechanical data

Weight [g]

33.3

Housing

rectangular

Dimensions [mm]

35.4 x 13 x 21

Materials

housing: ABS; PPSU; Sealing: EPDM

Lens material

PMMA

Lens alignment

side lens

Tightening torque [Nm]

0.5; (screws)

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Remarks

operating voltage "supply class 2" according to cULus

Pack quantity

1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR, black, Ø 3.7 mm; 3 x 0.25 mm²
Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

x:	Abstand [mm]
y:	Funktionsreservefaktor
