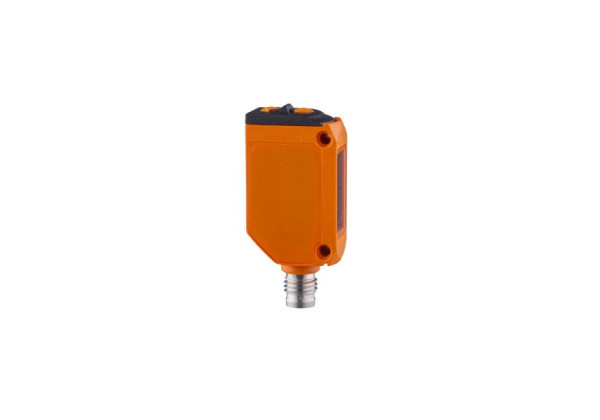

O6H206 - efector200-O6H-FNKG/AS/3P

Code: O6H206

Particularly compact housing for use where space is restricted
Intuitive setting of the sensitivity via potentiometer
User-friendly selection of light-on or dark-on via rotary switch
Particularly interference-immune background suppression even with strongly reflecting backgrounds
Excellent price/performance ratio

Product characteristics

Type of light	red light
Housing	rectangular

Application

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	22; ((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	NPN
Output function	light-on/dark-on mode; (selectable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range [mm]	2...200; (white paper 200 x 200 mm)
Range on white object (90 % remission) [mm]	2...200
Range on grey object (18 % remission) [mm]	4...200
Range on black object (6 % remission) [mm]	8...200
Range adjustable	yes
Max. light spot diameter [mm]	8
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65; IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

683

UL approval

UL Approval no.

E001

Mechanical data

Weight [g]

18.2

Housing

rectangular

Dimensions [mm]

46 x 13 x 21

Materials

housing: ABS; PPSU

Lens material

PMMA

Lens alignment

side lens

Sealing material

EPDM

Tightening torque [Nm]

0.5

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Remarks

operating voltage "supply class 2" according to cULus

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A; Locking: brass, coated; Sealing: EPDM

Diagrams and graphs

a:	sensor
b:	object
c:	background
x:	distance sensor/object [mm]
y:	min. distance object/background [mm]

accuracy graph

x:	distance sensor/object [mm]
y:	min. distance object/background [mm]
1 =	object black (6 % remission) , background white (90 % remission)
2 =	object grey (18 % remission) , background white (90 % remission)
3 =	object white (90 % remission) , background white (90 % remission)

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O6H206-01 — 13.04.2023 —
