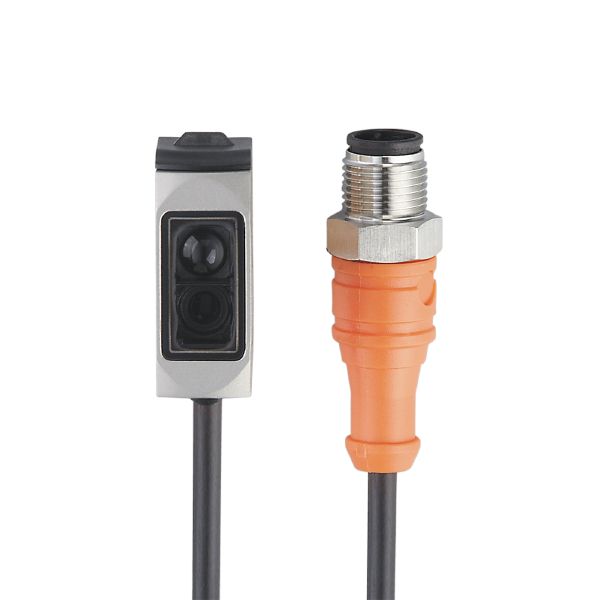

O6S314 - O6S-OOKG/0,30M/US
Brand: IFM Electronic
Code: O6S314
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Very long range independent of the object colour
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 11; ((24 V)) |
| Protection class | III |
| Type of light | red light |
| Wave length [nm] | 633 |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | < 10 |
| Max. light spot diameter [mm] | 300 |
| Light spot dimensions refer to | at maximum range |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Device Identification | ||||
| SIO mode | yes | ||||
| Required master port type | A | ||||
| Min. process cycle time [ms] | 2.5 | ||||
| IO-Link process data (cyclical) |
| ||||
| IO-Link functions (acyclical) | application specific tag; operating hours counter; switching cycles counter | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 52.6 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 34.8 x 13 x 21 | |
| Materials | housing: stainless steel (1.4404 / 316L); plastics: PPSU; Sealing: EPDM | |
| Lens material |
| |
| Lens alignment | side lens | |
| Tightening torque [Nm] | 1; (screws) |
Displays / operating elements
| Display |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Cable: 0.3 m, PVC; 3 x 0.25 mm² |
|---|---|
| Connection | Connector: 1 x M12; coding: A |
Diagrams and graphs
| excess gain graph |
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — O6S314-00 — 13.04.2023 —
