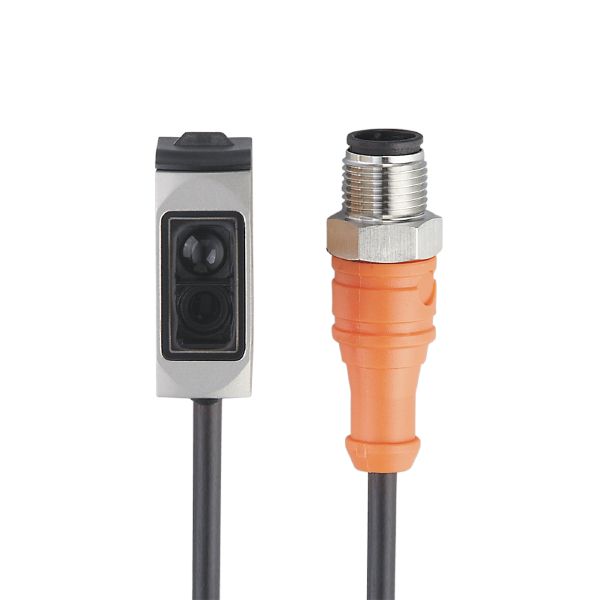

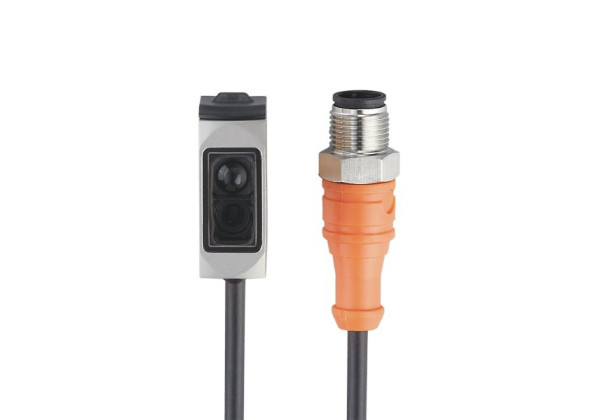

O6S402 - O6S-OOKG/0,30m/US

Code: O6S402

Robust stainless steel housing for use in metalworking and in the automotive industry
Resistant to oils and coolants
High protection rating for the requirements of harsh industrial environments
Very long range independent of the object colour

Product characteristics

Type of light	red light
Housing	rectangular

Application

Function principle	Through-beam sensor
Application	suited for use in the machine tool industry

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	11; ((24 V))
Protection class	III
Type of light	red light
Wave length [nm]	633

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 10
Max. light spot diameter [mm]	300
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65; IP 67; IP 68

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

2942

UL approval

UL Approval no.

E021

Mechanical data

Weight [g]

49.7

Housing

rectangular

Dimensions [mm]

34.8 x 13 x 21

Materials

housing: stainless steel (1.4404 / 316L); plastics: PPSU; Sealing: FKM

Lens material

PMMA

Lens alignment

side lens

Tightening torque [Nm]

1; (screws)

Displays / operating elements

Display

operation

1 x LED, green

Remarks

operating voltage "supply class 2" according to cULus

Pack quantity

1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PUR; 2 x 0.25 mm²
Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

excess gain graph

x:	distance [mm]
y:	excess gain factor
