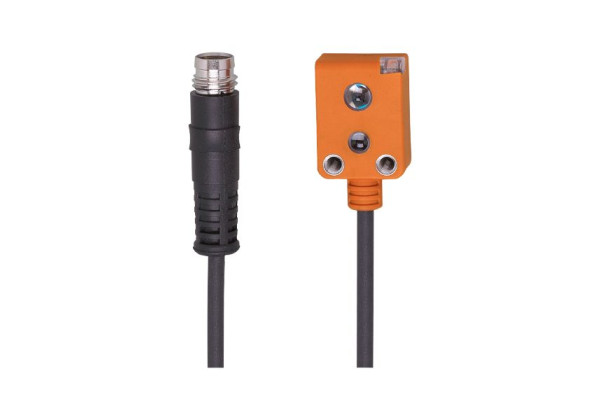

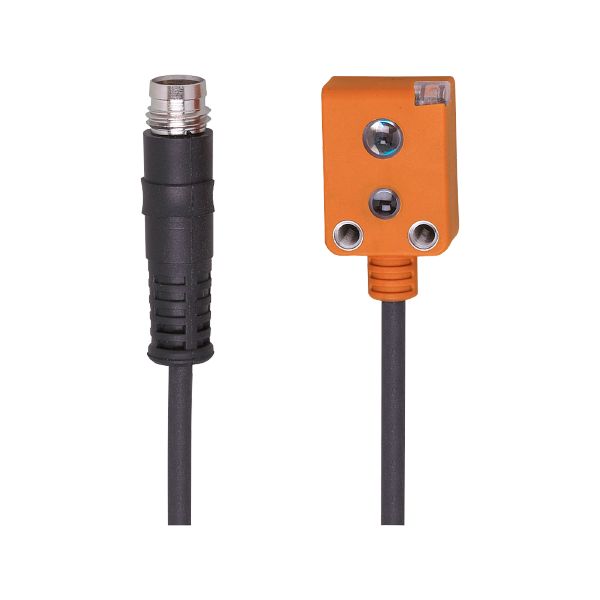

O7H200 - efector200-O7H-HPKG/0,20M/AS

Code: O7H200

Particularly small housing for use where space is restricted
For the reliable position detection in feeding and handling technology
Small light spot and narrow light cone for detecting of small objects
Precise background suppression
Simple alignment due to visible red light

Product characteristics

Type of light	red light
Housing	rectangular

Application

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10...30 DC; ("supply class 2" according to UL)
Current consumption [mA]	20; ((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	750
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range [mm]	5...30; (white paper 200 x 200 mm)
Range on white object (90 % remission) [mm]	5...30
Range on grey object (18 % remission) [mm]	6...30
Range on black object (6 % remission) [mm]	7...29
Range adjustable	no
Max. light spot diameter [mm]	2.5
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

1610

Mechanical data

Weight [g]

14.4

Housing

rectangular

Dimensions [mm]

20.3 x 15 x 9

Materials

Lens material

PMMA

Lens alignment

side lens

Displays / operating elements

Display

switching status

1 x LED, yellow

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.2 m, PUR; 3 x 0.14 mm²
Connection	Connector: 1 x M8; coding: A; Locking: snap-fit
