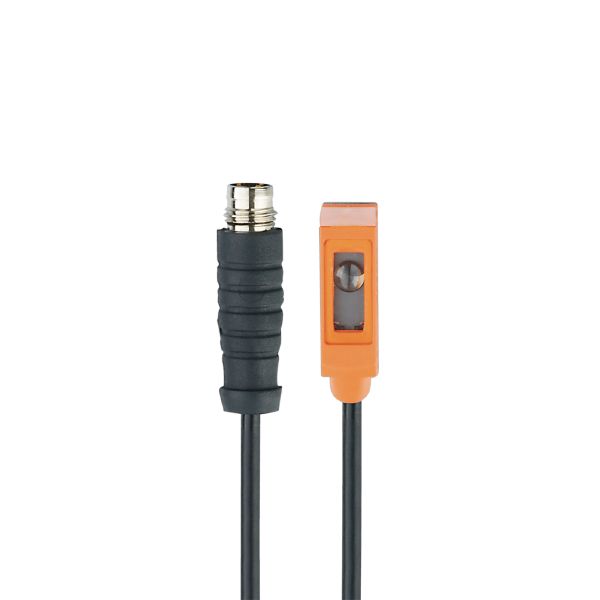

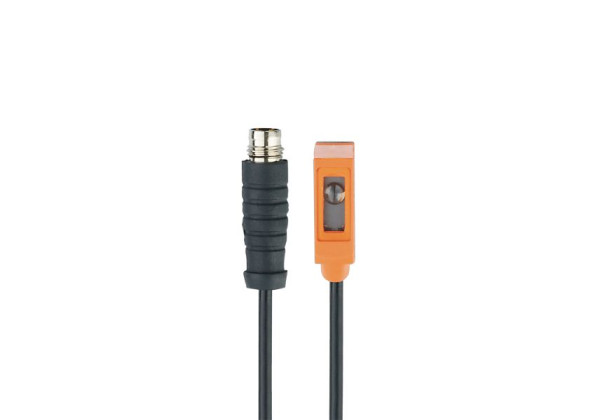

O8S201 ifm electronic O8 Photoelectric Sensor Through Beam (Emitter) < 3 m Detection Range

Code: O8S201

Particularly small housing for use where space is restricted
For the reliable position detection in feeding and handling technology
Small light spot and narrow light cone for detecting of small objects
Ready for operation immediately thanks to fixed setting
Simple alignment due to visible red light

Product characteristics

Type of light	red light
Housing	rectangular

Application

Function principle	Through-beam sensor

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	12; ((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Detection zone

Transmitter / receiver	transmitter
Range [m]	< 3
Max. light spot diameter [mm]	200
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65; IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

2942

UL approval

Ta	-25...60 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
UL Approval no.	E026
File number UL	E174191

Mechanical data

Weight [g]

20.9

Housing

rectangular

Dimensions [mm]

28.1 x 8.1 x 14.4

Materials

housing: ABS; stainless steel (1.4404 / 316L)

Lens material

PMMA

Lens alignment

side lens

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PVC, black, Ø 2.9 mm; 2 x 0.08 mm²
Connection	Connector: 1 x M8; coding: A

Diagrams and graphs

excess gain graph

x:	distance [mm]
y:	excess gain factor
