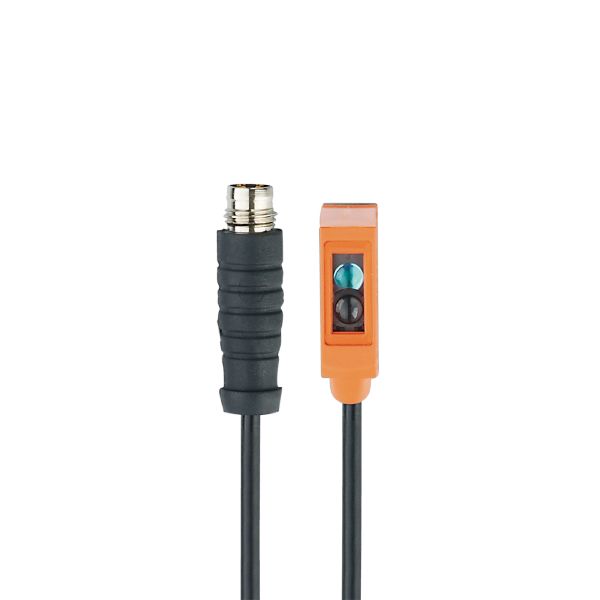

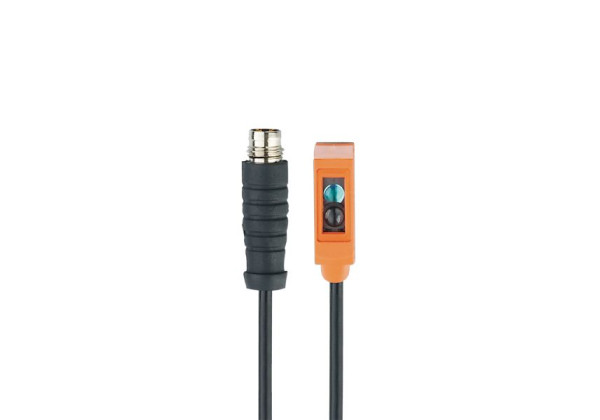

O8T204 - O8T-HPKG/IO-Link/0,30M/AS/4P

Code: O8T204

Particularly small housing for use where space is restricted
For the reliable position detection in feeding and handling technology
Precise detection of very small, very flat or highly reflective components
Easy setting of the range with IO-Link
Very long range

Product characteristics

Type of light	red light
Housing	rectangular

Application

Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	20; ((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	633

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	100
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed

Detection zone

Range [mm]	0...180; (white paper 200 x 200 mm)
Max. light spot diameter [mm]	18
Light spot dimensions refer to	at maximum range

Interfaces

Communication interface

IO-Link

Transmission type

COM2 (38,4 kBaud)

IO-Link revision

1.1

SDCI standard

IEC 61131-9

Profiles

Smart Sensor: Device Identification; Device Diagnosis; Teach Channel; Switching Channel

SIO mode

yes

Required master port type

Min. process cycle time [ms]

2.5

IO-Link process data (cyclical)

function	bit length
process value	8
device status	4
binary switching information	1

IO-Link functions (acyclical)

application specific tag; operating hours counter; switching cycles counter

Supported DeviceIDs

Type of operation	DeviceID
Default	788

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65; IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

1067

UL approval

Ta	-25...60 °C
Enclosure type	Type 1
power supply	Limited Voltage/Current
UL Approval no.	E017
File number UL	E174191

Mechanical data

Weight [g]

21.1

Housing

rectangular

Dimensions [mm]

28.1 x 8.1 x 14.4

Materials

housing: ABS; stainless steel (1.4404 / 316L)

Lens material

PMMA

Lens alignment

side lens

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Cable: 0.3 m, PVC, black, Ø 2.9 mm; 3 x 0.08 mm²
Connection	Connector: 1 x M8; coding: A

Diagrams and graphs

excess gain graph

x:	distance [mm]
y:	excess gain factor
