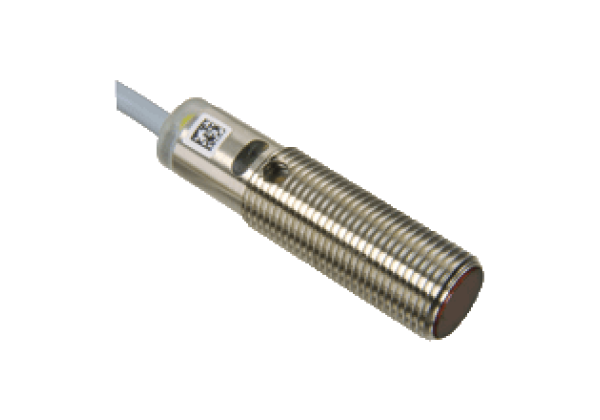

Diffuse mode sensor OBD300-12GM40-E4
Brand: Pepperl+Fuchs
Code: OBD300-12GM40-E4
Diffuse mode sensor, M12 threaded housing design, metal housing, front optical face, 300 mm detection range, red light, light/dark on, 1 NPN output, fixed cable, Robust M12 threaded housing, Less space required, Light-on/dark-on, programmable, Degree of protection IP67
Datasheet excerpt: Technical data of OBD300-12GM40-E4
| Product Description |
|---|
| Diffuse mode sensor, M12 threaded housing design, metal housing, front optical face, 300 mm detection range, red light, light/dark on, 1 NPN output, fixed cable |
| General specifications | ||
|---|---|---|
| Detection range | 0... 300 mm | |
| Adjustment range | 20... 300 mm | |
| Reference target | standard white 100 mm x 100 mm | |
| Light source | LED | |
| Light type | red , 640 nm | |
| Angle deviation | +/- 2 ° | |
| Diameter of the light spot | approx. 20 mm at a distance of 300 mm | |
| Opening angle | approx. 4 ° | |
| Optical face | frontal | |
| Ambient light limit | EN 60947-5-2 10000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 800 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: Power on | |
| Function indicator | LED yellow ON: lights when object is detected | |
| Control elements | Sensing range adjuster | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC , class 2 | |
| Ripple | 10 % | |
| No-load supply current | ≤ 15 mA | |
| Input | ||
| Control input | light on +UB dark on: 0 V | |
| Output | ||
| Switching type | light/dark on electrically switchable | |
| Signal output | 1 NPN output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Voltage drop | ≤ 2 V | |
| Switching frequency | ≤ 1000 Hz | |
| Response time | 0.5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Standards | UL 508 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Approvals | CE, cULus Listed 57M3 (Only in association with UL Class 2 power supply; Type 1 enclosure) | |
| Ambient conditions | ||
| Ambient temperature | -30... 60 °C (-22... 140 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | brass, nickel-plated | |
| Optical face | PMMA | |
| Mass | approx. 45 g | |
| Cable length | 2 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 10.0.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC001821 |
| ETIM 8.0 | EC001821 |
| ETIM 7.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
