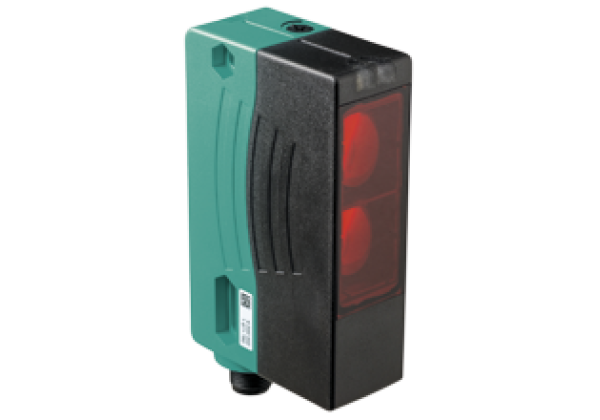

Diffuse mode sensor OBD8000-R300-2P1-V1-L
Brand: Pepperl+Fuchs
Code: OBD8000-R300-2P1-V1-L
Diffuse mode sensor , Extremely long detection range paves the way for new applications , Pulse Ranging Technology (PRT), Visible light source for easy alignment, Minimal black-white difference, Switch point adjustment with quick twist
Datasheet excerpt: Technical data of OBD8000-R300-2P1-V1-L
| Product Description |
|---|
| Diffuse mode sensor |
| General specifications | ||
|---|---|---|
| Detection range | 0.03... 8 m | |
| Adjustment range | 0.05... 8 m | |
| Reference target | Kodak white (90%) | |
| Light type | modulated visible red light | |
| Laser nominal ratings | ||
| Note | LASER LIGHT , DO NOT VIEW DIRECTLY WITH OPTICAL INSTRUMENTS | |
| Laser class | 1M | |
| Wave length | 660 nm | |
| Beam divergence | < 25 mrad | |
| Pulse length | 4 ns | |
| Repetition rate | 250 kHz | |
| max. pulse energy | < 2.4 nJ | |
| Black-white difference (6 %/90 %) | < 0.5 % | |
| Angle deviation | max. ± 2° | |
| Measuring method | Pulse Ranging Technology (PRT) | |
| Diameter of the light spot | vertical 60 mm , horizontal 30 mm at a distance of 2 m | |
| Ambient light limit | 50000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 100 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green | |
| Function indicator | 2 LEDs yellow for switching state | |
| Control elements | Sensing range adjuster | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | 10 % within the supply tolerance | |
| No-load supply current | ≤ 80 mA / 24 V DC | |
| Time delay before availability | < 0.7 s , for temperatures <-30°C compliance of the specification 5 mins after power on | |
| Output | ||
| Switching type | Q - Pin4: NPN normally closed / dark-on, PNP normally open / light-on /Q - Pin2: NPN normally open / light-on, PNP normally closed / dark-on | |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Switching frequency | 50 Hz | |
| Response time | 5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Laser safety | EN 60825-1:2014 | |
| Approvals and certificates | ||
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| FDA approval | IEC 60825-1:2014 Complies with 21 CFR 1040.10 and 1040.11 except for deviations pursuant to Laser Notice No. 50, dated June 24, 2007 | |
| Ambient conditions | ||
| Ambient temperature | -40... 55 °C (-40... 131 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Housing width | 25.8 mm | |
| Housing height | 88 mm | |
| Housing depth | 54.3 mm | |
| Degree of protection | IP67 | |
| Connection | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | Plastic ABS | |
| Optical face | PMMA | |
| Mass | 90 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 10.0.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC001821 |
| ETIM 8.0 | EC001821 |
| ETIM 7.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 5.0 | EC001821 |
| UNSPSC 12.1 | 39121528 |
