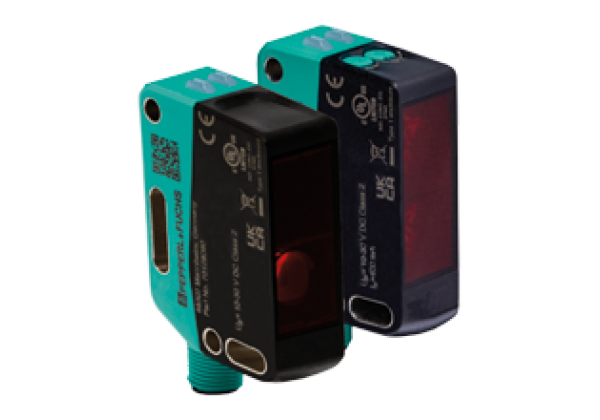

Thru-beam sensor (pair) OBE35M-R202-SE5
Brand: Pepperl+Fuchs
Code: OBE35M-R202-SE5
Medium design with versatile mounting options, Degree of protection IP67, Mounting on full metal sockets, Very bright, highly visible light spot, Highly visible LEDs for Power ON and switching state
Datasheet excerpt: Technical data of OBE35M-R202-SE5
| System components | ||
|---|---|---|
| Emitter | OBE35M-R202-S | |
| Receiver | OBE35M-R202-E5 | |
| General specifications | ||
| Effective detection range | 0... 35 m | |
| Threshold detection range | 47 m | |
| Light source | LED | |
| Light type | modulated visible red light | |
| LED risk group labelling | exempt group | |
| Transmitter frequency | F1 = 8.2 kHz | |
| Diameter of the light spot | approx. 1200 mm at a distance of 35 m | |
| Opening angle | 2 ° | |
| Ambient light limit | EN 60947-5-2 : 40000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 656 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: on - power on flashing (4 Hz) - short circuit | |
| Function indicator | Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve Flashing (8 Hz) - fault detected, the outputs maintain the status | |
| Control elements | Receiver: light/dark switch | |
| Control elements | Receiver: sensitivity adjustment | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | Emitter: ≤ 25 mA Receiver: ≤ 40 mA at 24 V Operating voltage | |
| Protection class | III | |
| Input | ||
| Test input | emitter deactivation at +UB | |
| Output | ||
| Switching type | The switching type of the sensor is adjustable. The default setting is: Q - BK: PNP normally open / dark-on | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Usage category | DC-12 and DC-13 | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 1000 Hz | |
| Response time | 0.5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -30... 60 °C (-22... 140 °F) , fixed cable -20... 60 °C (-4... 140 °F) , movable cable not appropriate for conveyor chains | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Housing width | 20 mm | |
| Housing height | 62 mm | |
| Housing depth | 42 mm | |
| Degree of protection | IP67 | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | PC (Polycarbonate) | |
| Optical face | PMMA | |
| Mass | Emitter: approx. 95 g receiver: approx. 100 g | |
| Cable length | 2 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270901 |
| ECLASS 12.0 | 27270901 |
| ECLASS 11.0 | 27270901 |
| ECLASS 10.0.1 | 27270901 |
| ECLASS 9.0 | 27270901 |
| ECLASS 8.0 | 27270901 |
| ECLASS 5.1 | 27270901 |
| ETIM 9.0 | EC002716 |
| ETIM 8.0 | EC002716 |
| ETIM 7.0 | EC002716 |
| ETIM 6.0 | EC002716 |
| ETIM 5.0 | EC002716 |
| UNSPSC 12.1 | 39121528 |
