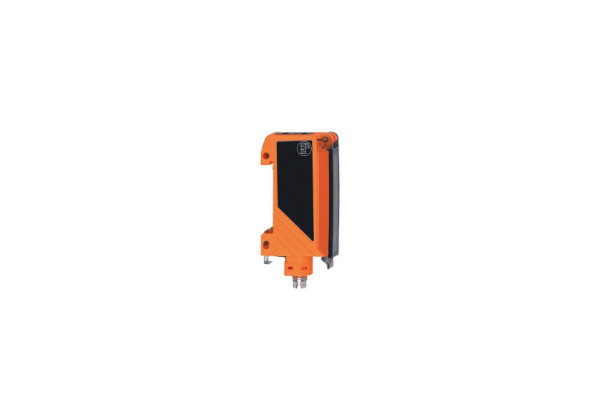

OBF508 - efector200-OBF-FAKG/T/AS
Brand: IFM Electronic
Code: OBF508
- Easy adjustment of sensitivity and pulse stretching via pushbutton
- LED display to check operation, switching status and function
- For use as diffuse reflection sensor or through-beam sensor
- High switching frequency for fast processes
- Operation with high-quality glass fibre optics for harsh industrial applications
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Design | Fibre-optic amplifiers for glass fibre optics, for fibre optics with metal sheath, FE/FT-50 |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 50 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
Outputs
| Electrical design | PNP/NPN; (automatic load detection PNP/NPN) |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 100 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
| Time function [s] | 0.001...0.09 |
Detection zone
| Range [m] | 0...1; (Through-beam sensor) | |
|---|---|---|
| Range [mm] | 0...150; (Diffuse reflection sensor) | |
| Factory setting |
| |
| Range adjustable | yes |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| MTTF [years] | 837 |
Mechanical data
| Weight [g] | 66.5 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 36 x 15 x 60 |
| Materials | PPE modified |
| Lens alignment | side lens |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| ||||
|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connector: 1 x M8; coding: A |
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OBF508-00 — 13.04.2023 —
