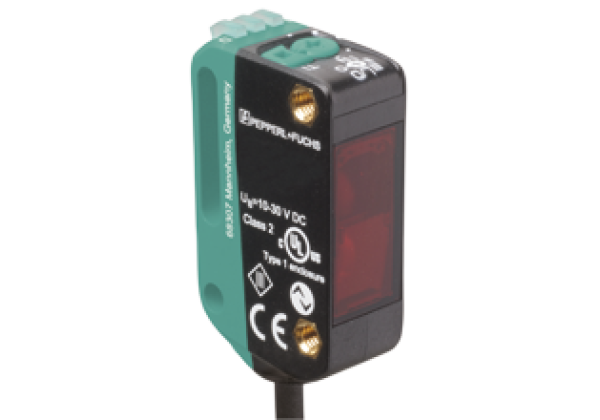

Retroreflective sensor (glass) OBG5000-R100-E5F-IO
Brand: Pepperl+Fuchs
Code: OBG5000-R100-E5F-IO
Retroreflective sensor with polarization filter for clear object detection, Miniature design with versatile mounting options, Detects transparent objects, i.e., clear glass, PET and transparent films, Two machines in one: clear object detection or reflection operating mode with long range, High degree of protection IP69K, IO-Link interface for service and process data
Datasheet excerpt: Technical data of OBG5000-R100-E5F-IO
| Product Description |
|---|
| Retroreflective sensor with polarization filter for clear object detection |
| General specifications | ||
|---|---|---|
| Effective detection range | 0... 3.5 m in TEACH mode ; 0... 5 m at switch position "N" | |
| Reflector distance | 0... 3.5 m in TEACH mode ; 0... 5 m at switch position "N" | |
| Threshold detection range | 6 m | |
| Reference target | H85-2 reflector | |
| Light source | LED | |
| Light type | modulated visible red light | |
| LED risk group labelling | exempt group | |
| Diameter of the light spot | approx. 170 mm at a distance of 3.5 m | |
| Opening angle | approx. 5 ° | |
| Ambient light limit | EN 60947-5-2 | |
| Functional safety related parameters | ||
| MTTFd | 600 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: constantly on - power on flashing (4Hz) - short circuit flashing with short break (1 Hz) - IO-Link mode | |
| Function indicator | Yellow LED: Permanently lit - light path clear Permanently off - object detected Flashing (4 Hz) - insufficient operating reserve | |
| Control elements | Teach-In key | |
| Control elements | 5-step rotary switch for operating modes selection | |
| Contrast detection levels | 10 % - clean, water filled PET bottles 18 % - clear glass bottles 40 % - colored glass or opaque materials Adjustable via rotary switch | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | < 25 mA at 24 V supply voltage | |
| Protection class | III | |
| Interface | ||
| Interface type | IO-Link ( via C/Q = BK ) | |
| IO-Link revision | 1.1 | |
| Device ID | 0x110A08 (1116680) | |
| Transfer rate | COM2 (38.4 kBit/s) | |
| Min. cycle time | 2.3 ms | |
| Process data width | Process data input 2 Bit Process data output 2 Bit | |
| SIO mode support | yes | |
| Compatible master port type | A | |
| Output | ||
| Stability alarm output | 1 PNP function reserve output (alarm), short-circuit protected, protected from reverse polarity, open collector | |
| Switching type | The switching type of the sensor is adjustable. The default setting is: C/Q - BK: PNP normally open / dark-on, IO-Link Alarm output - WH: PNP normally closed | |
| Signal output | 1 PNP, short-circuit protected, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Usage category | DC-12 and DC-13 | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 500 Hz | |
| Response time | 1 ms | |
| Conformity | ||
| Communication interface | IEC 61131-9 | |
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| Ambient conditions | ||
| Ambient temperature | -20... 60 °C (-4... 140 °F) , movable cable not appropriate for conveyor chains | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Housing width | 11 mm | |
| Housing height | 37.1 mm | |
| Housing depth | 21.5 mm | |
| Degree of protection | IP67 / IP69 / IP69K | |
| Connection | 2 m fixed cable | |
| Material | ||
| Housing | PC (Polycarbonate) | |
| Optical face | PMMA | |
| Mass | approx. 36 g | |
| Cable length | 2 m | |
