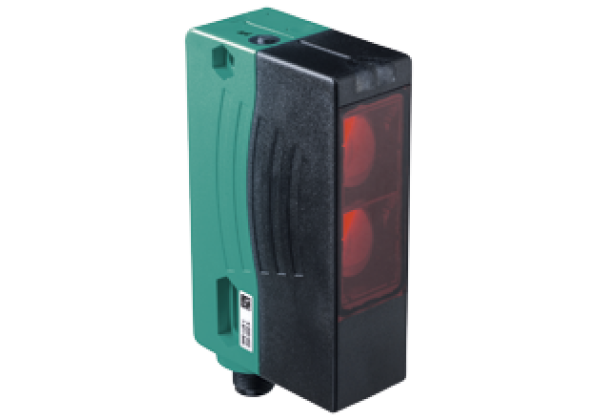

Retroreflective sensor OBR50M-R300-2PP-V1
Brand: Pepperl+Fuchs
Code: OBR50M-R300-2PP-V1
Retroreflective sensor, Pulse Ranging Technology (PRT), Optimized for use with fixed reflectors, Good alignability due to red transmission LED, Reliable detection of reflecting metall objects, Simple operation with only one TEACH-IN button
Datasheet excerpt: Technical data of OBR50M-R300-2PP-V1
| Product Description |
|---|
| Retroreflective sensor |
| General specifications | ||
|---|---|---|
| Effective detection range | 0... 50 m | |
| Reflector distance | 0.2... 50 m | |
| Reference target | 3 x REF-H100 | |
| Light source | LED | |
| Light type | modulated visible red light | |
| LED risk group labelling | exempt group | |
| Angle deviation | max. ± 2° | |
| Measuring method | Pulse Ranging Technology (PRT) | |
| Diameter of the light spot | approx. 16 cm x 18 cm at a distance of 10 m | |
| Ambient light limit | 50000 Lux | |
| Window width | 100 mm | |
| Functional safety related parameters | ||
| MTTFd | 100 a | |
| Mission Time (TM) | 10 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green | |
| Function indicator | 2 LEDs yellow for switching state | |
| Control elements | Teach-In key | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | 10 % within the supply tolerance | |
| No-load supply current | ≤ 80 mA / 24 V DC | |
| Time delay before availability | < 0.7 s , for temperatures <-30°C compliance of the specification 5 mins after power on | |
| Output | ||
| Switching type | Q - Pin4: NPN normally open / dark-on, PNP normally closed / light-on /Q - Pin2: NPN normally closed / light-on, PNP normally open / dark-on | |
| Signal output | 2 push-pull (4 in 1) outputs, short-circuit protected, reverse polarity protected | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA | |
| Switching frequency | 50 Hz | |
| Response time | 5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| Ambient conditions | ||
| Ambient temperature | -40... 55 °C (-40... 131 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Housing width | 25.8 mm | |
| Housing height | 88 mm | |
| Housing depth | 54.3 mm | |
| Degree of protection | IP67 | |
| Connection | 4-pin, M12 x 1 connector | |
| Material | ||
| Housing | Plastic ABS | |
| Optical face | PMMA | |
| Mass | 90 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270902 |
| ECLASS 12.0 | 27270902 |
| ECLASS 11.0 | 27270902 |
| ECLASS 10.0.1 | 27270902 |
| ECLASS 9.0 | 27270902 |
| ECLASS 8.0 | 27270902 |
| ECLASS 5.1 | 27270902 |
| ETIM 9.0 | EC002717 |
| ETIM 8.0 | EC002717 |
| ETIM 7.0 | EC002717 |
| ETIM 6.0 | EC002717 |
| ETIM 5.0 | EC002717 |
| UNSPSC 12.1 | 39121528 |
