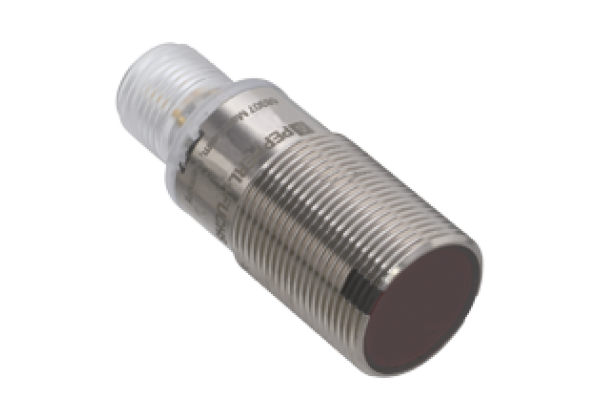

Triangulation sensor (BGS) OBT150-18GM40-E2-V1
Brand: Pepperl+Fuchs
Code: OBT150-18GM40-E2-V1
Triangulation sensor with background suppression, Strong metallic housing in cylindrical shape M18 x 1, Adjustable background suppression, Not sensitive to ambient light, Degree of protection IP67, High operating distance
Datasheet excerpt: Technical data of OBT150-18GM40-E2-V1
| Product Description |
|---|
| Triangulation sensor with background suppression |
| General specifications | ||
|---|---|---|
| Detection range | 10... 150 mm | |
| Detection range min. | 10... 40 mm | |
| Detection range max. | 10... 150 mm | |
| Adjustment range | 40... 150 mm | |
| Reference target | standard white, 100 mm x 100 mm | |
| Light source | LED | |
| Light type | modulated visible red light | |
| Black-white difference (6 %/90 %) | < 10 % at 150 mm | |
| Diameter of the light spot | approx. 6 mm at detection range 150 mm | |
| Opening angle | approx. 2 ° | |
| Optical face | frontal | |
| Ambient light limit | EN 60947-5-2 100000 Lux | |
| Hysteresis | < 2 % | |
| Functional safety related parameters | ||
| MTTFd | 1734 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: on - power on flashing (4 Hz) - short circuit | |
| Function indicator | LED yellow: constantly on - object detected constantly off - object not detected | |
| Control elements | sensitivity adjustment | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | < 25 mA | |
| Protection class | III | |
| Output | ||
| Switching type | Q - Pin4: PNP normally open / light-on | |
| Signal output | 1 PNP output, short-circuit protected, reverse polarity protected, open collector | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 500 Hz | |
| Response time | ≤ 1 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| Ambient conditions | ||
| Ambient temperature | -40... 60 °C (-40... 140 °F) | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 3-pin, M12 x 1 connector | |
| Material | ||
| Housing | brass, nickel-plated | |
| Optical face | PMMA | |
| Connector | plastic | |
| Mass | approx. 15 g | |
