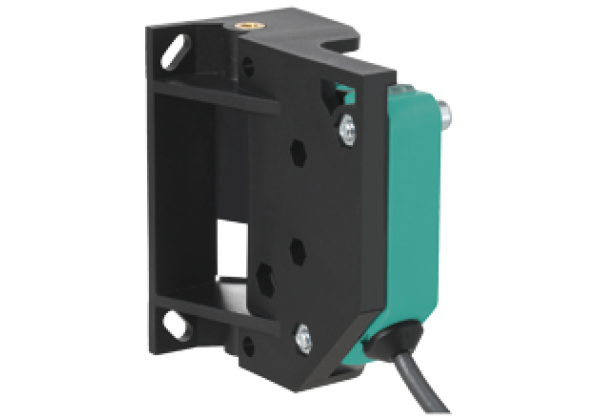

Triangulation sensor (BGS) OBT650-R201-E5F-Y0395-SET
Brand: Pepperl+Fuchs
Code: OBT650-R201-E5F-Y0395-SET
Sensor with mounting bracket, preassembled, Particularly suitable for conveyor systems, Best background suppressor in its class, Automatic switching threshold adaptation eliminates soiling effects, Precision object detection, almost irrespective of the color
Datasheet excerpt: Technical data of OBT650-R201-E5F-Y0395-SET
| General specifications | ||
|---|---|---|
| Detection range | 30... 650 mm | |
| Detection range min. | 30... 100 mm | |
| Detection range max. | 30... 650 mm | |
| Adjustment range | 100... 650 mm | |
| Reference target | standard white, 100 mm x 100 mm | |
| Light source | LED | |
| Light type | modulated visible red light | |
| LED risk group labelling | exempt group | |
| Black-white difference (6 %/90 %) | < 6 % at 650 mm | |
| Diameter of the light spot | approx. 20 mm x 20 mm at a distance of 650 mm | |
| Opening angle | approx. 2 ° | |
| Ambient light limit | EN 60947-5-2 : 70000 Lux | |
| Functional safety related parameters | ||
| MTTFd | 600 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| Operation indicator | LED green: power on ; flashing (4 Hz) - short-circuit | |
| Function indicator | LED yellow: lights when object is detected ; flashing (approx. 4 Hz) at Pollution | |
| Control elements | Light-on/dark-on changeover switch | |
| Control elements | Sensing range adjuster | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Ripple | max. 10 % | |
| No-load supply current | < 25 mA at 24 V supply voltage | |
| Protection class | III | |
| Output | ||
| Stability alarm output | 1 PNP, active when level falls below function reserve after approx. 5 s. Immediately active if the beam is interrupted 4 times during the flashtime. | |
| Switching type | The switching type of the sensor is adjustable. The default setting is: Q - Pin4: PNP normally open / light-on Alarm output - Pin2: PNP normally open / light-on detected when soiled | |
| Signal output | 2 PNP outputs, short-circuit-proof, reverse polarity protection, surge-proof | |
| Switching voltage | max. 30 V DC | |
| Switching current | max. 100 mA , resistive load | |
| Usage category | DC-12 and DC-13 | |
| Voltage drop | ≤ 1.5 V DC | |
| Switching frequency | 200 Hz | |
| Response time | 2.5 ms | |
| Conformity | ||
| Product standard | EN 60947-5-2 | |
| Approvals and certificates | ||
| UL approval | E87056 , cULus Listed , class 2 power supply , type rating 1 | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Ambient conditions | ||
| Ambient temperature | -40... 60 °C (-40... 140 °F) , fixed cable -20... 60 °C (-4... 140 °F) , movable cable not appropriate for conveyor chains | |
| Storage temperature | -40... 70 °C (-40... 158 °F) | |
| Mechanical specifications | ||
| Housing width | 76 mm | |
| Housing height | 40 mm | |
| Housing depth | 71 mm | |
| Degree of protection | IP67 / IP69 / IP69K | |
| Connection | 300 mm fixed cable with M12 x 1, 4-pin connector | |
| Material | ||
| Housing | PC (Polycarbonate) Retainer PA 6 (Polyamid) | |
| Optical face | PMMA | |
| Mass | approx. 95 g | |
| Cable length | 0.3 m | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270903 |
| ECLASS 12.0 | 27270903 |
| ECLASS 11.0 | 27270903 |
| ECLASS 10.0.1 | 27270903 |
| ECLASS 9.0 | 27270903 |
| ECLASS 8.0 | 27270903 |
| ECLASS 5.1 | 27270903 |
| ETIM 9.0 | EC001821 |
| ETIM 8.0 | EC001821 |
| ETIM 7.0 | EC001821 |
| ETIM 6.0 | EC001821 |
| ETIM 5.0 | EC002719 |
| UNSPSC 12.1 | 39121528 |
