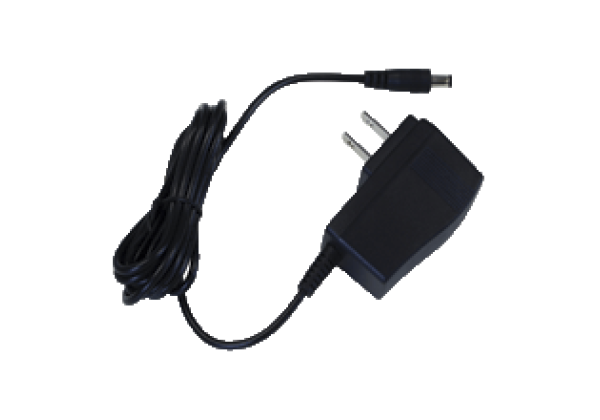

Power supply ODZ-MAH-5V-110V
Brand: Pepperl+Fuchs
Code: ODZ-MAH-5V-110V
Power supply
Datasheet excerpt: Technical data of ODZ-MAH-5V-110V
| Product Description |
|---|
| Power supply |
| Output | ||
|---|---|---|
| Output rated operating current | 1500 mA , short-circuit protected | |
| Output voltage | 5 V DC / 5 % | |
| Compliance with standards and directives | ||
| Directive conformity | ||
| EMC Directive 89/336/EEC | EN 60950 | |
| Ambient conditions | ||
| Ambient temperature | 0... 40 °C (32... 104 °F) | |
| Storage temperature | -10... 80 °C (14... 176 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP20 | |
| Connection | Supply voltage: 5.5 mm hollow connector power plug | |
| Mass | approx. 135 g | |
| Dimensions | 72 mm x 52 mm x 35 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27040301 |
| ECLASS 12.0 | 27040301 |
| ECLASS 11.0 | 27040301 |
| ECLASS 10.0.1 | 27040301 |
| ECLASS 9.0 | 27040301 |
| ECLASS 8.0 | 27040301 |
| ECLASS 5.1 | 27040301 |
| ETIM 9.0 | EC002540 |
| ETIM 8.0 | EC002540 |
| ETIM 7.0 | EC002540 |
| ETIM 6.0 | EC002540 |
| ETIM 5.0 | EC002540 |
| UNSPSC 12.1 | 39121004 |
