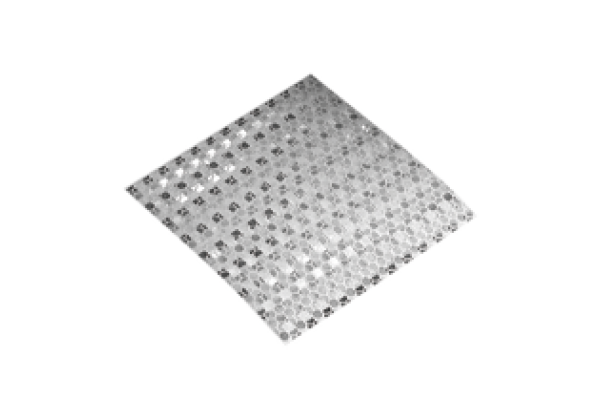

Reflective tape OFR-A4
Brand: Pepperl+Fuchs
Code: OFR-A4
Reflective tape A4 (297 mm x 210 mm)
Datasheet excerpt: Technical data of OFR-A4
| Product Description |
|---|
| Reflective tape A4 (297 mm x 210 mm) |
| General specifications | ||
|---|---|---|
| Construction type | rectangular | |
| Optical elements | Micro-triple pyramids | |
| Ambient conditions | ||
| Ambient temperature | -35... 60 °C (-31... 140 °F) | |
| Mechanical specifications | ||
| Material | F6000 | |
| Dimensions | 297 mm x 210 mm | |
| Mounting | self-adhesive | |
| Storage | Store cool and dry | |
| General information | ||
| Supplementary information | The ambient temperature when mounting and processing the film should not be less than 18 °C. | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27273601 |
| ECLASS 12.0 | 27273601 |
| ECLASS 11.0 | 27273601 |
| ECLASS 10.0.1 | 27273601 |
| ECLASS 9.0 | 27273601 |
| ECLASS 8.0 | 27279203 |
| ECLASS 5.1 | 27279203 |
| ETIM 9.0 | EC002467 |
| ETIM 8.0 | EC002467 |
| ETIM 7.0 | EC002467 |
| ETIM 6.0 | EC002467 |
| ETIM 5.0 | EC002467 |
| UNSPSC 12.1 | 39111818 |
