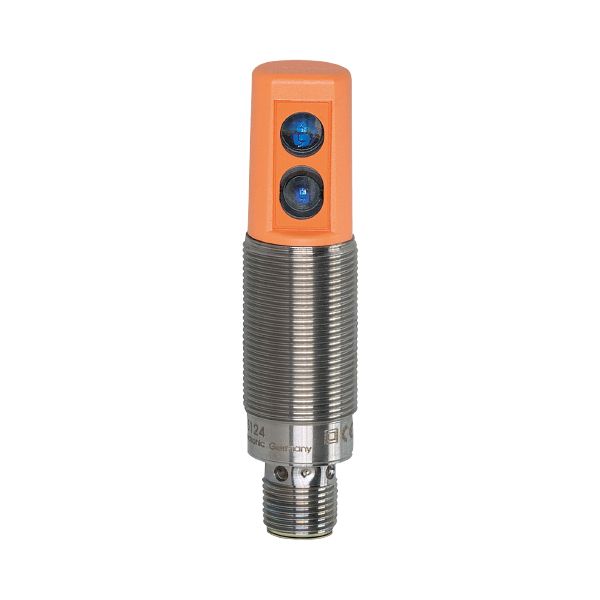

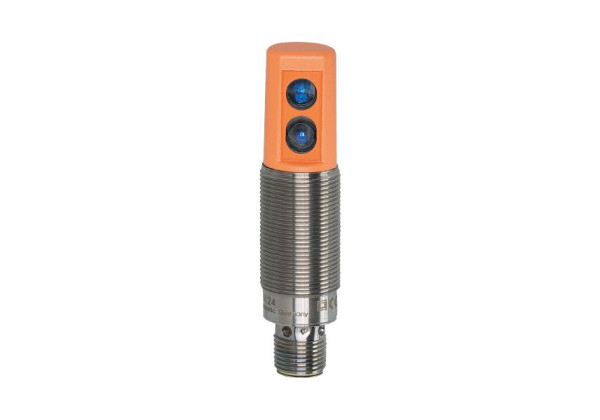

OG5123 - efector200-OGH-HPKG/US/90°/100MM

Code: OG5123

Particularly space-saving design with light emission on the side
For use where space is restricted
Ready for operation immediately thanks to fixed setting
Simple alignment due to visible red light
Precise background suppression

Product characteristics

Type of light	red light
Housing	threaded type

Application

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10...30 DC; ("supply class 2" to cULus)
Current consumption [mA]	25
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	625

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	< 100; (white paper 200 x 200 mm 90% remission)
Range adjustable	no
Max. light spot diameter [mm]	16
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 68

Tests / approvals

EMC

EN 60947-5-2
EN 55011	class B

MTTF [years]

541

Mechanical data

Weight [g]

57.3

Housing

threaded type

Dimensions [mm]

M18 x 1 / L = 65

Thread designation

M18 x 1

Materials

stainless steel; ABS

Lens material

PMMA

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green

Accessories

Items supplied

Nuts: 2

lock washers: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A
