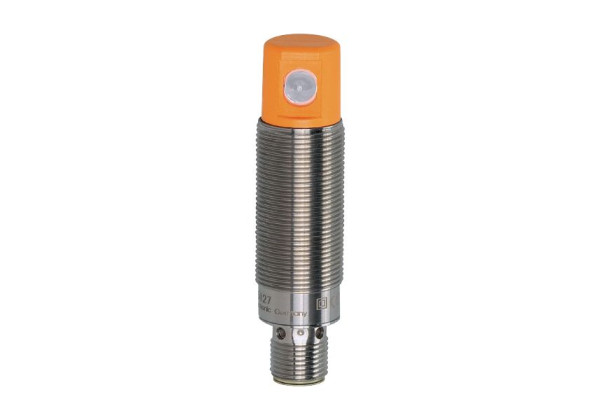

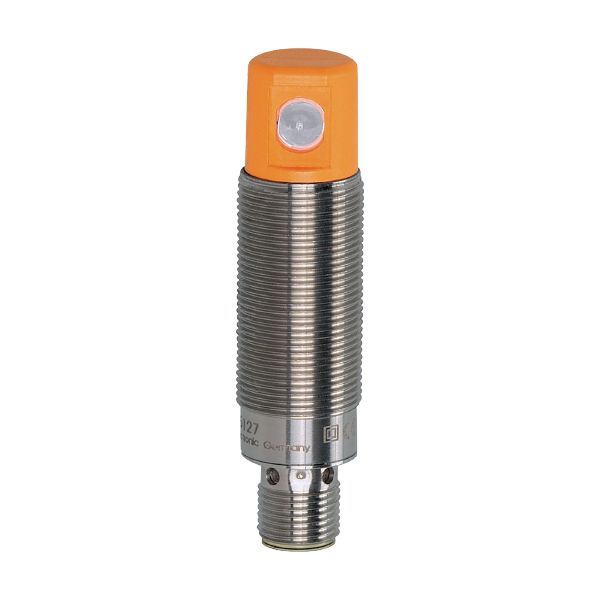

OG5129 - efector200-OGS-OOKG/US/90°
Brand: IFM Electronic
Code: OG5129
- Particularly space-saving design with light emission on the side
- For use where space is restricted
- Ready for operation immediately thanks to fixed setting
- Robust housing for use in harsh industrial environments
- Very long range
Product characteristics
| Type of light | red light |
|---|---|
| Housing | threaded type |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC; ("supply class 2" to cULus) |
|---|---|
| Current consumption [mA] | < 19 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 660 |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | < 9 |
| Range adjustable | no |
| Max. light spot diameter [mm] | 3000 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 68 |
Tests / approvals
| EMC |
| ||||
|---|---|---|---|---|---|
| MTTF [years] | 1714 |
Mechanical data
| Weight [g] | 58 | |
|---|---|---|
| Housing | threaded type | |
| Dimensions [mm] | M18 x 1 / L = 59.3 | |
| Thread designation | M18 x 1 | |
| Materials | stainless steel; ABS | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OG5129-00 — 13.04.2023 —
