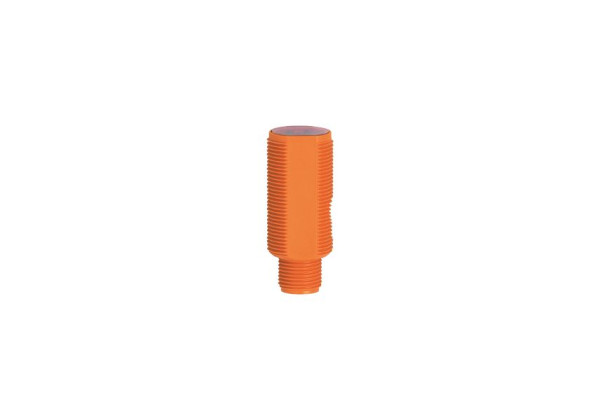

OGE100 - efector200-OGE-DPKG/US

Code: OGE100

Very long range
For use in conveying and materials handling
Ready for operation immediately thanks to fixed setting
Excellent price/performance ratio
Low-cost alternative to units with metal housing

Product characteristics

Type of light	red light
Housing	threaded type

Application

Function principle	Through-beam sensor

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	8
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	645

Outputs

Electrical design	PNP
Output function	dark-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Overload protection	yes

Detection zone

Transmitter / receiver	receiver
Range [m]	< 8
Range adjustable	no

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67; (in conjunction with a corresponding connector)

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

1335

Mechanical data

Weight [g]

14.7

Housing

threaded type

Dimensions [mm]

M18 x 1 / L = 44

Thread designation

M18 x 1

Materials

housing: ABS

Lens material

PMMA

Displays / operating elements

Display

switching status

1 x LED, yellow

Accessories

Items supplied

lock nuts: 2

Remarks

Pack quantity	1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGE100-00 — 13.04.2023 —
