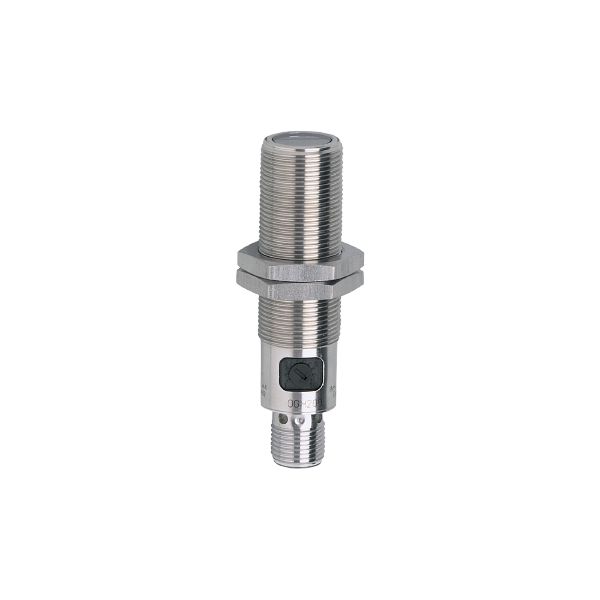

OGH200 - efector200-OGH-HPKG/US100

Code: OGH200

Robust stainless steel housing for use in harsh industrial environments
Precise background suppression
Intuitive setting of the sensitivity via potentiometer
Wide range of fixing components for quick and easy mounting
Excellent price/performance ratio

Product characteristics

Type of light	red light
Housing	threaded type

Application

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	25
Protection class	II
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	624

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	15...250; (white paper 200 x 200 mm 90% remission)
Range on white object (90 % remission) [mm]	15...250
Range on grey object (18 % remission) [mm]	15...230
Range on black object (6 % remission) [mm]	15...160
Range adjustable	yes
Max. light spot diameter [mm]	21
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

339

Mechanical data

Weight [g]

53.1

Housing

threaded type

Dimensions [mm]

M18 x 1 / L = 72

Thread designation

M18 x 1

Materials

housing: stainless steel; operator interface: TPE

Lens material

PMMA

Displays / operating elements

Display

switching status

1 x LED, yellow

Operating elements

potentiometer

Accessories

Items supplied

lock nuts: 2

Remarks

operating voltage "supply class 2" according to cULus

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M12; coding: A

Diagrams and graphs

a:	sensor
b:	object
c:	background
x:	distance sensor/object [mm]
y:	min. distance object/background [mm]

accuracy graph

x:	distance sensor/object [mm]
y:	min. distance object/background [mm]
1 =	object black (6 % remission) , background white (90 % remission)
2 =	object grey (18 % remission) , background white (90 % remission)
3 =	object white (90 % remission) , background white (90 % remission)
