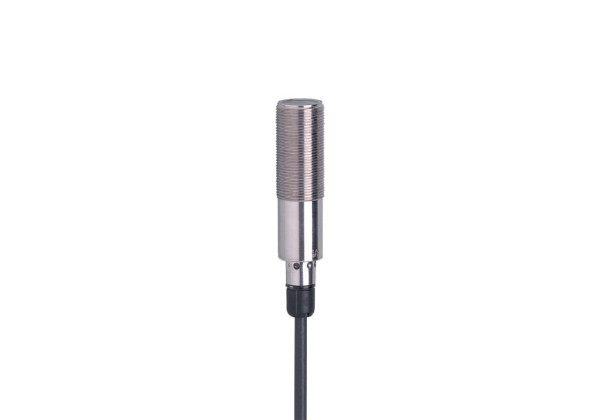

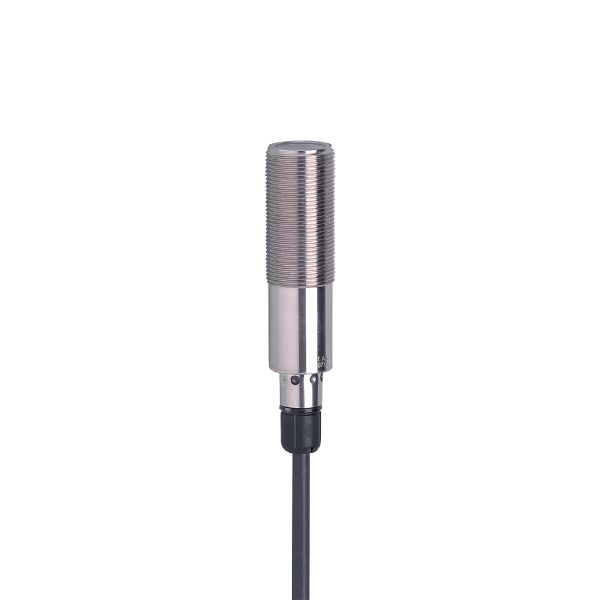

OGS501 - efector200-OGS-OOKG/2M
Brand: IFM Electronic
Code: OGS501
- Robust stainless steel housing for use in harsh industrial environments
- Very long range
- Ready for operation immediately thanks to fixed setting
- Wide range of fixing components for quick and easy mounting
- Excellent price/performance ratio
Product characteristics
| Type of light | red light |
|---|---|
| Housing | threaded type |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 20 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 624 |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | < 25 |
| Max. light spot diameter [mm] | 1000 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| MTTF [years] | 629 |
Mechanical data
| Weight [g] | 125.1 | |
|---|---|---|
| Housing | threaded type | |
| Dimensions [mm] | M18 x 1 / L = 80.4 | |
| Thread designation | M18 x 1 | |
| Materials | stainless steel (1.4404 / 316L); PA; EPDM | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Cable: 2 m, PUR; 3 x 0.34 mm² |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGS501-00 — 13.04.2023 —
