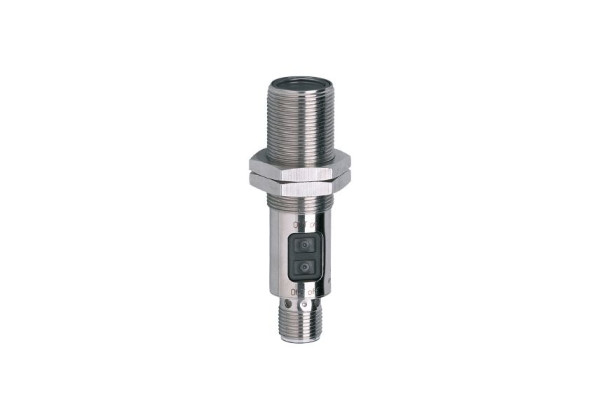

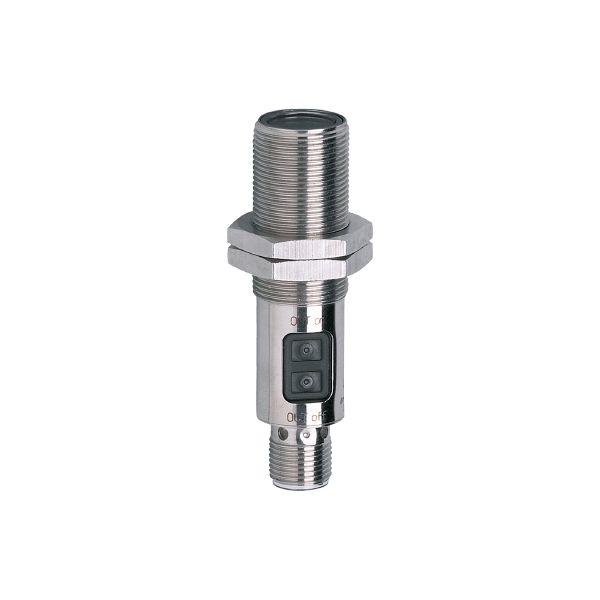

OGT302 - efector200-OGTIFPKG/US
Brand: IFM Electronic
Code: OGT302
- Robust stainless steel housing for use in the food and beverage industry
- Resistant to high-pressure cleaning with aggressive cleaning agents
- High protection rating for the requirements of harsh industrial environments
- Intuitive setting of sensitivity and output function
- Very long range
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | threaded type |
Application
| Function principle | Diffuse reflection sensor |
|---|
Electrical data
| Operating voltage [V] | 10...36 DC |
|---|---|
| Current consumption [mA] | 25 |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length [nm] | 855 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 150; (200 (...60 °C)) |
| Switching frequency DC [Hz] | 2000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range [mm] | 2...600; (white paper 200 x 200 mm 90% remission) | |
|---|---|---|
| Factory setting |
| |
| Setting range [mm] | 150...600 | |
| Range adjustable | yes | |
| Max. light spot diameter [mm] | 66 | |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 61.1 | |
|---|---|---|
| Housing | threaded type | |
| Dimensions [mm] | M18 x 1 / L = 72 | |
| Thread designation | M18 x 1 | |
| Materials | stainless steel (1.4404 / 316L); PA; LCP; EPDM; TPU | |
| Lens material |
|
Displays / operating elements
| Display |
| ||
|---|---|---|---|
| Teach function | yes | ||
| Electronic lock | yes |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Diagrams and graphs
| excess gain graph |
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OGT302-00 — 07.08.2023 —
