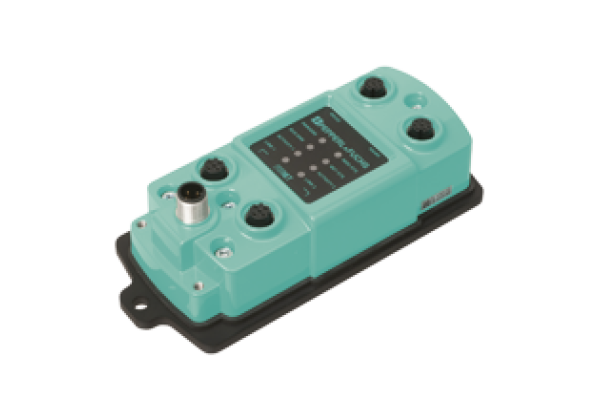

Gateway OHV-F230-B17
Brand: Pepperl+Fuchs
Code: OHV-F230-B17
PROFINET Gateway for OHV handheld
Datasheet excerpt: Technical data of OHV-F230-B17
| Product Description |
|---|
| PROFINET Gateway for OHV handheld |
| Functional safety related parameters | ||
|---|---|---|
| MTTFd | 110 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED green | LINK 1/LINK2: Port 1/2 connected | |
| LED yellow | ACTIVITY 1/ACTIVITY 2: data at port 1/2 | |
| LED red | BUS ERR: Communication error | |
| LED red/green | PWR/ERR: green: on; red: system error | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC PELV | |
| Ripple | ≤ 10 % at 30 V DC | |
| Current consumption | ≤ 1.1 A Inc. readers | |
| Power consumption | 2.5 W Without readers | |
| Interface 1 | ||
| Interface type | RS-232, EIA/TIA-232E | |
| Transfer rate | 115k, 8N1 | |
| Interface 2 | ||
| Interface type | RS485 , No function | |
| Interface 3 | ||
| Interface type | 2 x PROFINET IO with int. switch | |
| Protocol | Conformance Class B Realtime class RT Min. cycle time 1 ms | |
| Transfer rate | 10/100 Mbps | |
| Ambient conditions | ||
| Ambient temperature | -25... 60 °C (-13... 140 °F) , noncondensing | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP65 | |
| Connection | RS232/RS485: 2 x M12 connector, 8-pin, A-coded Power supply: M12 connector Protective earth: M4 earthing screw Ethernet: M12 connection, 4-pin, D-coded | |
| Material | ||
| Housing | powder coated aluminum | |
| Installation | screw fixing : 6 mm | |
| Mass | approx. 400 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27310192 |
| ECLASS 12.0 | 27310192 |
| ECLASS 11.0 | 27319290 |
| ECLASS 10.0.1 | 27319090 |
| ECLASS 9.0 | 27319290 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
