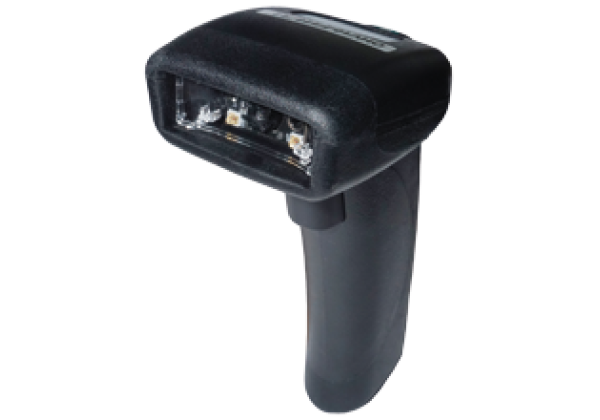

Handheld reader OHV10-F228-R2
Brand: Pepperl+Fuchs
Code: OHV10-F228-R2
Handheld reader for all common 1-D and 2-D codes
Datasheet excerpt: Technical data of OHV10-F228-R2
| Product Description |
|---|
| Handheld reader for all common 1-D and 2-D codes |
| General specifications | ||
|---|---|---|
| Light type | Integrated LED lightning (red) | |
| Readable codes | 1-D Codes: Codabar, Code 11, Code 32, Code 39, Code 93, Code 128, IATA 2 of 5, Interleaved 2 of 5, GS1 DataBar, Hong Kong 2 of 5, Matrix 2 of 5, MSI Plessey, NEC 2 of 5, Pharmacode, Plessey, Straight 2 of 5, Telepen, Trioptic, UPC/EAN/JAN Gestapelte 1-D Codes: Codablock F, Code 49, GS1 Composite (CC-A/CC-B/CC-C), MicroPDF, PDF417 2-D Codes: Aztec Code, Data Matrix, Data Matrix Rectangular, Grid Matrix, Han Xin, Maxicode, Micro QR Code, QR Code, QR Model 1 Post Codes: Australian Post, Canada Post, Intelligent Mail, Japan Post, KIX Code, Korea Post, Post-Net, Planet, Postnet, UK Royal Mail, UPU ID-tags | |
| Read distance | 40... 310 mm depending on the code type | |
| Reading field | max. 190 mm x 290 mm | |
| Modul size | min. 0.2 mm | |
| Ambient light limit | 96890 Lux | |
| Target velocity | Stop | |
| Nominal ratings | ||
| Camera | ||
| Type | CMOS | |
| Number of pixels | 1280 x 960 | |
| Image recording | real-time , manually triggered | |
| Indicators/operating means | ||
| Function indicator | LED green: Data carrier read | |
| Electrical specifications | ||
| Supply | via cable | |
| Interface | ||
| Physical | USB 2.0 , RS-232 | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Noise immunity | EN 55024:2010 | |
| Emitted interference | EN 55032:2012+AC:2013 | |
| Ambient conditions | ||
| Ambient temperature | -20... 55 °C (-4... 131 °F) | |
| Storage temperature | -30... 65 °C (-22... 149 °F) | |
| Relative humidity | 5... 95 % non-condensing | |
| Shock and impact resistance | Withstands multible drops from 1.8 m / 6 ft onto a concrete surface | |
| Mechanical specifications | ||
| Degree of protection | IP54 | |
| Connection | System connector for connecting cable | |
| Material | ||
| Housing | plastic | |
| Mass | 110 g | |
| Dimensions | 70 mm x 50 mm x 140 mm (l x w x h) | |
| General information | ||
| Scope of delivery | Handheld reader | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280101 |
| ECLASS 12.0 | 27280101 |
| ECLASS 11.0 | 27280101 |
| ECLASS 10.0.1 | 27280101 |
| ECLASS 9.0 | 27280101 |
| ECLASS 8.0 | 27280101 |
| ECLASS 5.1 | 27280101 |
| ETIM 9.0 | EC002999 |
| ETIM 8.0 | EC002999 |
| ETIM 7.0 | EC002999 |
| ETIM 6.0 | EC002999 |
| ETIM 5.0 | EC002999 |
| UNSPSC 12.1 | 43211701 |
