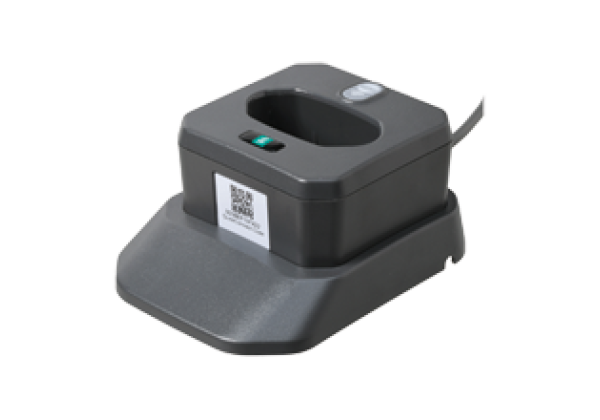

Charger for OHV210 with built-in Bluetooth modem OHV210-CHARGER-B15

Code: OHV210-CHARGER-B15

Charger for OHV210 with built-in Bluetooth modem

Datasheet excerpt: Technical data of OHV210-CHARGER-B15

Product Description
Charger for OHV210 with built-in Bluetooth modem

Indicators/operating means
Operation indicator		LED green: supply
Function indicator		LED blue: Bluetooth connection
Switch		Bluetooth
Key		1 button
Electrical specifications
Operating voltage		5 V DC
Operating current		max. 1 A
Interface
Physical		Bluetooth (Class II) , Mini USB
Transmitter frequency		2402... 2480 MHz (Bluetooth)
Transmitter radiated power		0.002 W
Output
Output rated operating current		max. 555 mA
Output voltage		4.2 V DC
Compliance with standards and directives
Standard conformity
	Electromagnetic compatibility	EN 61000-6-1:2007 EN 61000-6-2:2005/AC:2005 EN 61000-6-3:2007/A1:2011/AC:2012 EN 61000-6-4:2007/A1:2011
	Radio spectrum	ETSI EN 300328:V1.8.1
	Standards	EN 50581:2012
Approvals and certificates
FCC approval		FCC-ID: X8WBT840
Ambient conditions
Ambient temperature		-20... 55 °C (-4... 131 °F)
Storage temperature		-30... 65 °C (-22... 149 °F)
Mechanical specifications
Connection		Supply voltage: 5.5 mm hollow socket Interface : Mini USB
Mass		97 g
Dimensions		79 mm x 79 mm x 48 mm (l x w x h)
General information
Scope of delivery		charger + Adapter cable, USB to mini USB
