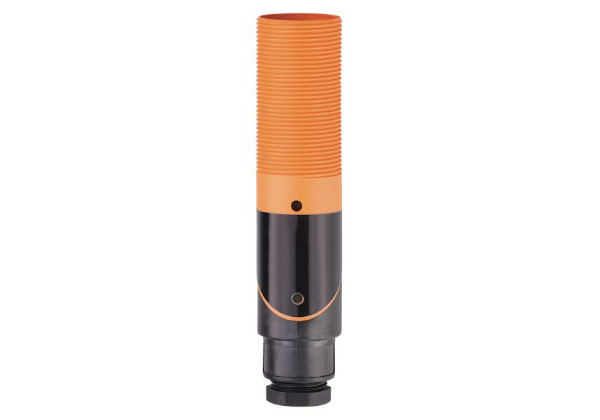

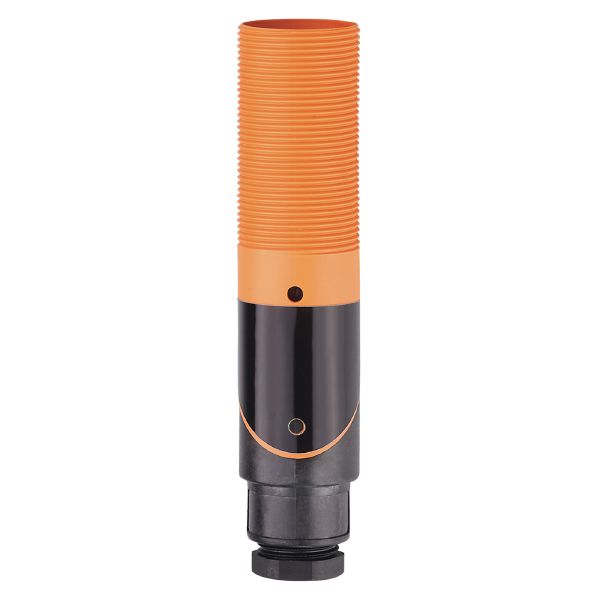

OI5019 - efector200-OIF-FPKG
Brand: IFM Electronic
Code: OI5019
- For use as diffuse reflection sensor or through-beam sensor
- With terminal chamber that can be rotated by 90°
- Programmable light-on/dark-on mode
- Operation with high-quality glass fibre optics for harsh industrial applications
Product characteristics
| Type of light | infrared light |
|---|---|
| Housing | threaded type |
Electrical data
| Operating voltage [V] | 10...55 DC |
|---|---|
| Current consumption [mA] | 30; ((24 V)) |
| Protection class | II |
| Reverse polarity protection | yes |
| Type of light | infrared light |
| Wave length [nm] | 880 |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | light-on/dark-on mode; (programmable) |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 250 |
| Switching frequency DC [Hz] | 100 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Range [m] | < 0.3 |
|---|---|
| Range [mm] | < 70 |
| Range adjustable | yes |
Operating conditions
| Ambient temperature [°C] | -25...80 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| MTTF [years] | 659 |
Mechanical data
| Weight [g] | 125.5 | |
|---|---|---|
| Housing | threaded type | |
| Dimensions [mm] | M30 x 1.5 / L = 125 | |
| Thread designation | M30 x 1.5 | |
| Materials | PBT; PPO modified | |
| Lens material |
|
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| ||||
|---|---|---|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | terminals:...1.5 mm²; Cable sheath: Ø 7...13 mm; Cable gland: M20 X 1.5 |
|---|
Diagrams and graphs
| excess gain graph |
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OI5019-00 — 13.04.2023 —
