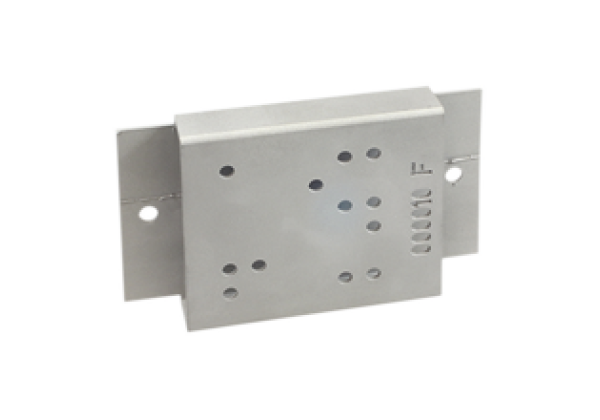

Code carrier OIC-C10V2A-CB1-xxxxxx-yyyyyy
Brand: Pepperl+Fuchs
Code: OIC-C10V2A-CB1-xxxxxx-yyyyyy
Code carrier for optical high-temperature identification system, stainless steel
Datasheet excerpt: Technical data of OIC-C10V2A-CB1-xxxxxx-yyyyyy
| Product Description |
|---|
| Code carrier for optical high-temperature identification system, stainless steel |
| General specifications | ||
|---|---|---|
| Read distance | 250... 450 mm Depending on the respective read device | |
| Data storage | Range of values: 6-character numerical, between 000.000 and 999.999 plus 1 check digit | |
| Ambient conditions | ||
| Ambient temperature | -25... 500 °C (-13... 932 °F) | |
| Mechanical specifications | ||
| Material thickness | 2 mm | |
| Material | ||
| Housing | Stainless steel V2A | |
| Installation | Parallel to the reader at the respective reading distance Tilt angle 10° max. | |
| Mass | approx. 280 g | |
| Note | Coating of the code sheets is possible, provided that reliable hole detection is guaranteed. | |
| Hole diameter | 5 mm | |
| General information | ||
| Ordering information | xxxxxx: starting value yyyyyy: number The final value is determined as follows: Final value = start value + number - 1 Note: The code plate numbers are always increased by the value 1 from the start value to the final value. | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27310192 |
| ECLASS 12.0 | 27310192 |
| ECLASS 11.0 | 27319290 |
| ECLASS 10.0.1 | 27319090 |
| ECLASS 9.0 | 27319290 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
