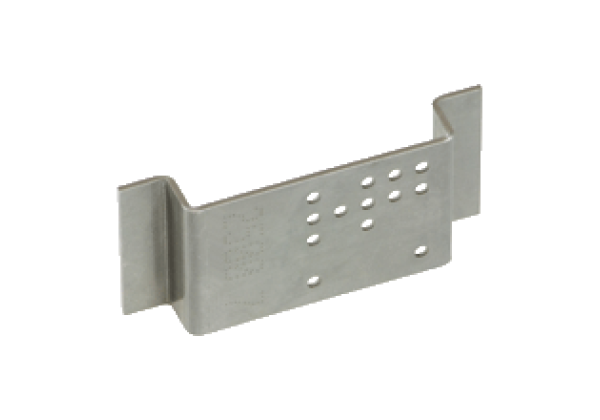

Code carrier OIC-C11V4A-CB2
Brand: Pepperl+Fuchs
Code: OIC-C11V4A-CB2
Code carrier for optical high-temperature identification system, stainless steel
Datasheet excerpt: Technical data of OIC-C11V4A-CB2
| Product Description |
|---|
| Code carrier for optical high-temperature identification system, stainless steel |
| General specifications | ||
|---|---|---|
| Read distance | 150... 250 mm at OIT300 | |
| Data storage | Value range: 4-digit numerical, between 1 and 4095 | |
| Ambient conditions | ||
| Ambient temperature | -25... 500 °C (-13... 932 °F) | |
| Mechanical specifications | ||
| Material thickness | 1.5 mm | |
| Material | ||
| Housing | stainless steel V4A | |
| Installation | Parallel to reading device at appropriate reading distance to avoid reflected light Tilt angle 10° max. | |
| Mass | approx. 41 g | |
| Dimensions | 80 mm x 36 mm | |
| Hole diameter | 3 mm | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27310192 |
| ECLASS 12.0 | 27310192 |
| ECLASS 11.0 | 27319290 |
| ECLASS 10.0.1 | 27319090 |
| ECLASS 9.0 | 27319290 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
