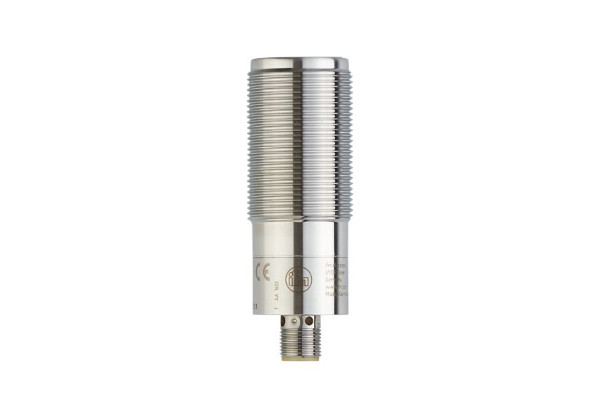

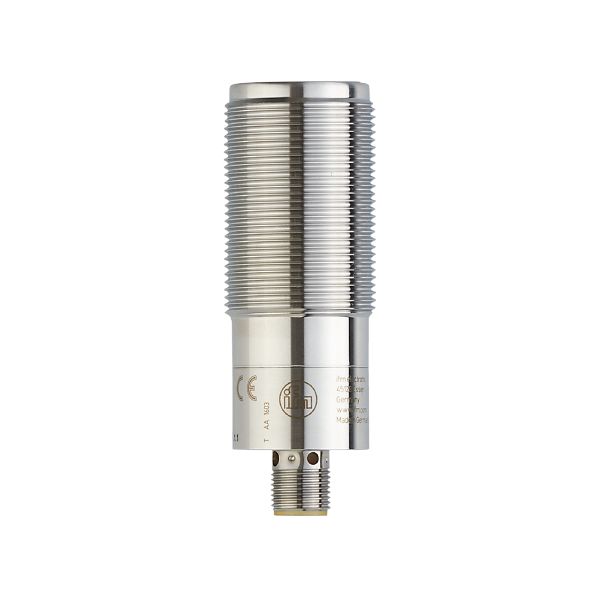

OID254 - efector200-OIDLCPKG/US
Brand: IFM Electronic
Code: OID254
- Very long range due to time-of-flight measurement
- Reliable background suppression and colour-independent detection
- High protection rating for the requirements of harsh industrial environments
- Laser protection class 1 for the requirements of the automotive industry
- User-friendly communication via IO-Link
Product characteristics
| Type of light | red light |
|---|---|
| Laser protection class | 1 |
Application
| Special feature | Background suppression |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | 75; (24 V) |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 650 |
| Typ. lifetime [h] | 50000 |
Inputs / outputs
| Number of inputs and outputs | Number of digital outputs: 2 |
|---|
Inputs
| Input circuit of digital inputs | 1 x 24 V PNP; (IEC 61131-2 Typ 3) |
|---|
Outputs
| Total number of outputs | 2 |
|---|---|
| Electrical design | PNP |
| Number of digital outputs | 2 |
| Output function | normally open / normally closed; (complementary) |
| Max. current load per output [mA] | 100 |
| Switching frequency DC [Hz] | 11 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Max. light spot diameter [mm] | 5 | |
|---|---|---|
| Light spot dimensions refer to | 2 m | |
| Detection range hysteresis [%] | < 5 | |
| Note on monitoring range hysteresis |
| |
| Background suppression available | yes | |
| Background suppression [m] | < 20 |
Measuring/setting range
| Measuring range [m] | 0.03...2 |
|---|---|
| Sampling rate [Hz] | 33 |
Interfaces
| Communication interface | IO-Link | ||||
|---|---|---|---|---|---|
| Transmission type | COM2 (38,4 kBaud) | ||||
| IO-Link revision | 1.1 | ||||
| SDCI standard | IEC 61131-9 | ||||
| Profiles | Smart Sensor: Sensor Identification; Binary Data Channel; Process Value; Sensor Diagnosis | ||||
| SIO mode | yes | ||||
| Process data analogue | 1 | ||||
| Process data binary | 1 | ||||
| Min. process cycle time [ms] | 6.6 | ||||
| Supported DeviceIDs |
|
Operating conditions
| Ambient temperature [°C] | -25...60 | |
|---|---|---|
| Note on ambient temperature |
| |
| Protection | IP 65; IP 67; IP 68; IP 69K |
Tests / approvals
| EMC |
| ||||||||||
|---|---|---|---|---|---|---|---|---|---|---|---|
| Laser protection class | 1 | ||||||||||
| Notes on laser protection |
| ||||||||||
| MTTF [years] | 210 |
Mechanical data
| Weight [g] | 227.5 |
|---|---|
| Materials | housing: stainless steel; front pane: PMMA; PEI; EPDM |
Displays / operating elements
| Display |
| ||||
|---|---|---|---|---|---|
| Display unit | cm |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M12; coding: A |
|---|
Diagrams and graphs
| hysteresis graph |
|
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OID254-00 — 13.04.2023 —
