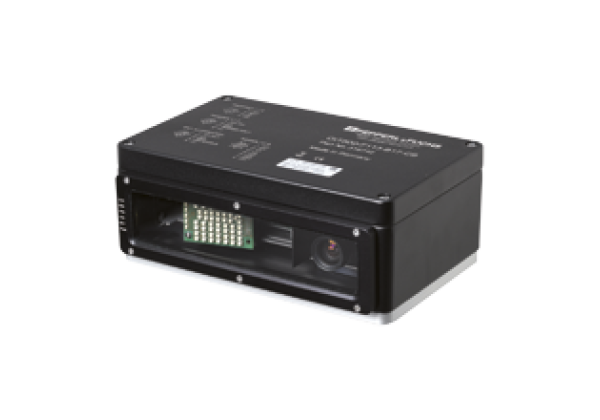

High temperature identification system OIT500-F113-B17-CB
Brand: Pepperl+Fuchs
Code: OIT500-F113-B17-CB
Optical high temperature identification system, 300 to 450 mm
Datasheet excerpt: Technical data of OIT500-F113-B17-CB
| Product Description |
|---|
| Optical high temperature identification system, 300 to 450 mm |
| General specifications | ||
|---|---|---|
| Light source | Integrated LED lightning | |
| Light type | Infrared | |
| Symbologies | CB1: perforated matrix 6 x 6 6 decimal digits | |
| Read distance | CB1: 300... 520 mm | |
| Reading field | 335 mm x 185 mm at max. read distance | |
| Evaluation frequency | 5 Hz | |
| Target velocity | triggered max. 1.5 m/s | |
| Functional safety related parameters | ||
| MTTFd | 86 a | |
| Mission Time (TM) | 20 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED indication | status , Function , communication | |
| Electrical specifications | ||
| Operating voltage | 24 V DC ± 15% , PELV | |
| Operating current | 200 mA without output drivers | |
| Interface 1 | ||
| Interface type | 100 BASE-TX | |
| Protocol | PROFINET IO Real-Time (RT) Conformance Class B Netload Class III | |
| Transfer rate | 100 Bit/s | |
| Interface 2 | ||
| Interface type | Ethernet | |
| Protocol | TCP/IP | |
| Transfer rate | 100 MBit/s | |
| Input | ||
| Input voltage | 24 V DC low: < 8 V, high: > 12 V | |
| Number/Type | 2 trigger input and supply max. 4 switching inputs | |
| Output | ||
| Number/Type | supply max. 200 mA and 1 control output for External lighting max. 4 switching outputs programmable | |
| Switching voltage | operating voltage minus voltage drop typ. 1.1 V | |
| Switching current | 100 mA each output | |
| Conformity | ||
| Shock resistance | EN 60068-2-27:2009 | |
| Vibration resistance | EN 60068-2-6:2008 | |
| Emitted interference | EN 61000-6-4:2007+A1:2011 | |
| Noise immunity | EN 61000-6-2:2005 | |
| Photobiological safety | EN 62471:2008 exempt group | |
| Approvals and certificates | ||
| CE conformity | CE | |
| Ambient conditions | ||
| Ambient temperature | 0... 60 °C (32... 140 °F) | |
| Storage temperature | -20... 75 °C (-4... 167 °F) | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 8-pin, M12x1 connector, standard (supply+IO) 2 x 4-pin, M12x1 socket, D-coded (LAN) 3 x 5-pin, M12x1 socket, A-coded ( Trigger , External lighting ) | |
| Material | ||
| Housing | diecast aluminum powder coated | |
| Mass | approx. 4000 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280103 |
| ECLASS 12.0 | 27280103 |
| ECLASS 11.0 | 27280103 |
| ECLASS 10.0.1 | 27280103 |
| ECLASS 9.0 | 27280103 |
| ECLASS 8.0 | 27280103 |
| ECLASS 5.1 | 27280103 |
| ETIM 9.0 | EC002999 |
| ETIM 8.0 | EC002999 |
| ETIM 7.0 | EC002999 |
| ETIM 6.0 | EC002999 |
| ETIM 5.0 | EC002999 |
| UNSPSC 12.1 | 43211701 |
