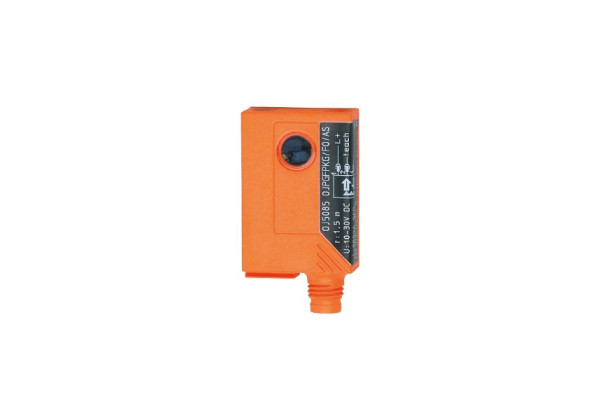

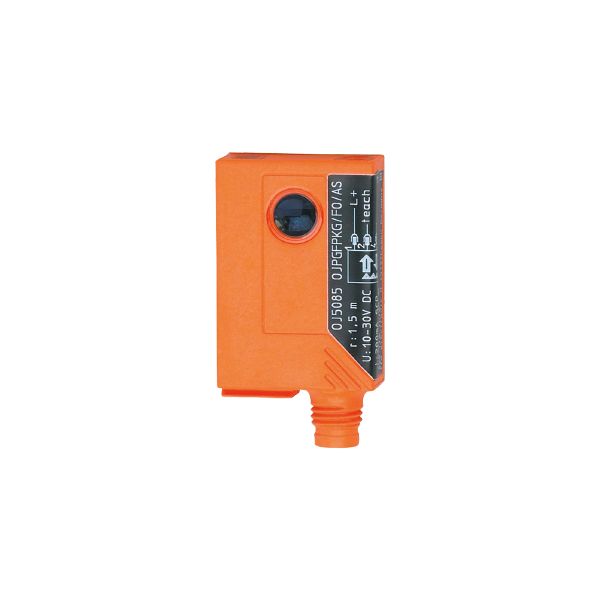

OJ5009 - efector200-OJE-FPKG/FO/AS

Code: OJ5009

Particularly compact housing for use where space is restricted
Very long range
Intuitive setting of sensitivity and output function
Easy mounting by clipping onto a mounting base
LED display to check operation, switching status and function

Product characteristics

Type of light	red light
Housing	rectangular

Application

Function principle	Through-beam sensor

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 12
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	660

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1200
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Transmitter / receiver	receiver
Range [m]	< 10
Range adjustable	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

968

Mechanical data

Weight [g]

Housing

rectangular

Dimensions [mm]

35 x 24 x 11

Materials

housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS

Lens material

glass

Lens alignment

front lens

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green
function	1 x LED, red

Electronic lock

yes

Accessories

Items supplied

Basic clip: 1, E20964

screws: 2 x M3 x 16

spring washers: 2

Nuts: 2

Remarks

operating voltage "supply class 2" according to cULus

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A

Diagrams and graphs

excess gain graph

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJ5009-01 — 13.04.2023 —
