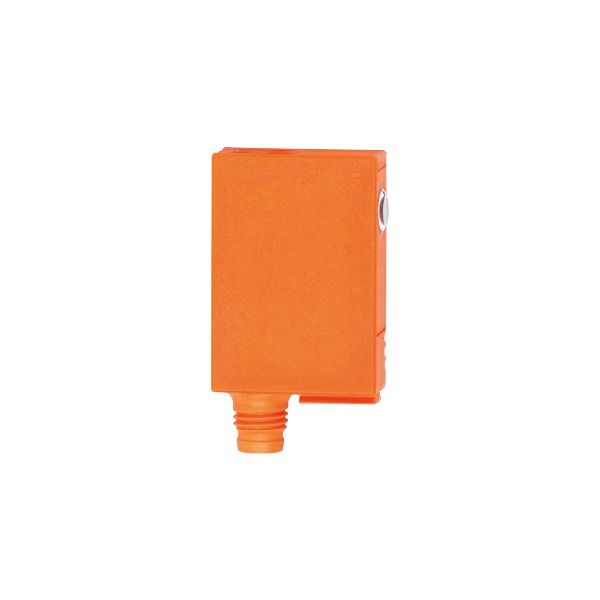

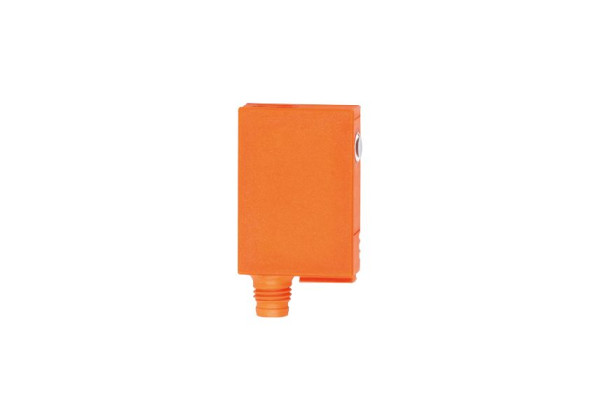

OJ5030 - efector200-OJS-OOKG/SO/AS
Brand: IFM Electronic
Code: OJ5030
- Particularly compact housing for use where space is restricted
- Very long range
- Simple alignment due to visible red light
- LED display to check operation, switching status and function
- Easy mounting by clipping onto a mounting base
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 19 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 660 |
Outputs
| Overload protection | yes |
|---|
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | < 10 |
| Max. light spot diameter [mm] | 1000 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| MTTF [years] | 1764 |
Mechanical data
| Weight [g] | 26.5 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 35 x 11 x 24 | |
| Materials | housing: ABS; fixture: diecast zinc; LED window: SEPS; pushbutton: SEPS | |
| Lens material |
| |
| Lens alignment | side lens |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M8; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJ5030-01 — 13.04.2023 —
