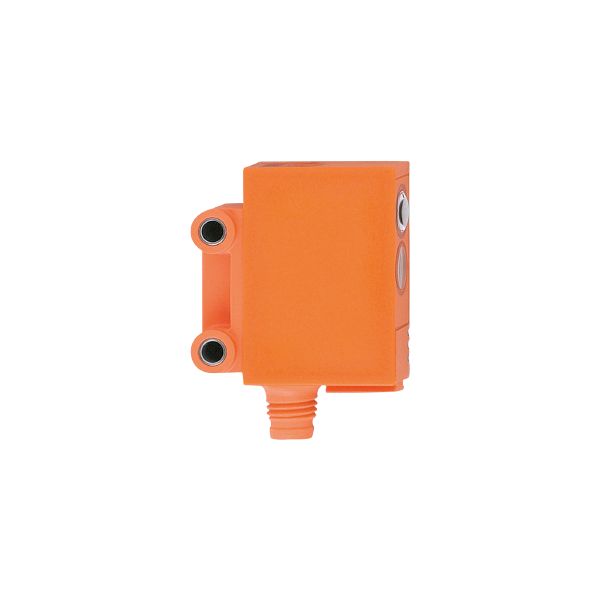

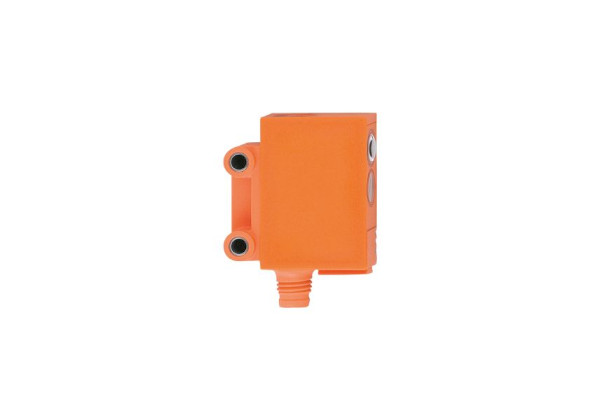

OJ5122 - efector200-OJB-FPKG/SO/AS

Code: OJ5122

Particularly compact housing for use where space is restricted
Very long range
Simple alignment due to visible red light
Intuitive setting of sensitivity and output function
Fast mounting by means of mounting holes with robust stainless steel sleeve

Product characteristics

Type of light	red light
Housing	rectangular

Application

Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	< 22
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	660

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	2000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	1...600; (white paper 200 x 200 mm 90% remission)
Range adjustable	yes
Max. light spot diameter [mm]	60
Light spot dimensions refer to	at maximum range

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

854

Mechanical data

Weight [g]

39.3

Housing

rectangular

Dimensions [mm]

35 x 11 x 24

Materials

housing: ABS; LED window: SEPS; pushbutton: SEPS

Lens material

glass

Lens alignment

side lens

Displays / operating elements

Display

switching status	1 x LED, yellow
operation	1 x LED, green
function	1 x LED, red

Electronic lock

yes

Accessories

Items supplied

screws: 2

spring washers: 2

Nuts: 2

Remarks

operating voltage "supply class 2" according to cULus

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A

Diagrams and graphs

excess gain graph
