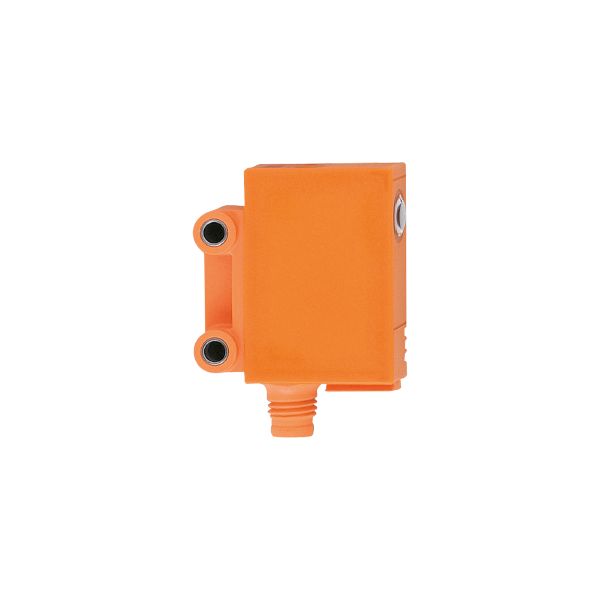

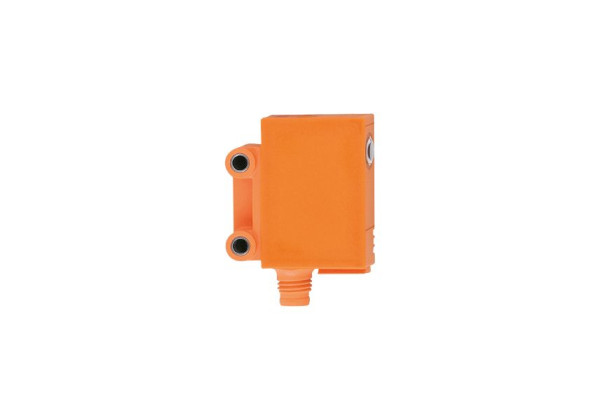

OJE200 - efector200-OJE-DPKG/SO/AS
Brand: IFM Electronic
Code: OJE200
- Particularly compact housing for use where space is restricted
- Very long range
- Simple alignment due to visible red light
- Ready for operation immediately thanks to fixed setting
- Fast mounting by means of mounting holes with robust stainless steel sleeve
Product characteristics
| Housing | rectangular |
|---|
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 10 |
| Protection class | III |
| Reverse polarity protection | yes |
Outputs
| Electrical design | PNP |
|---|---|
| Output function | dark-on mode |
| Max. voltage drop switching output DC [V] | 2.5 |
| Permanent current rating of switching output DC [mA] | 200 |
| Switching frequency DC [Hz] | 1000 |
| Short-circuit protection | yes |
| Type of short-circuit protection | pulsed |
| Overload protection | yes |
Detection zone
| Transmitter / receiver | receiver |
|---|---|
| Range [m] | < 10 |
| Range adjustable | no |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| MTTF [years] | 1152 |
Mechanical data
| Weight [g] | 15 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 35 x 11 x 24 | |
| Materials | ABS; SEPS | |
| Lens material |
| |
| Lens alignment | side lens |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M8; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJE200-01 — 13.04.2023 —
