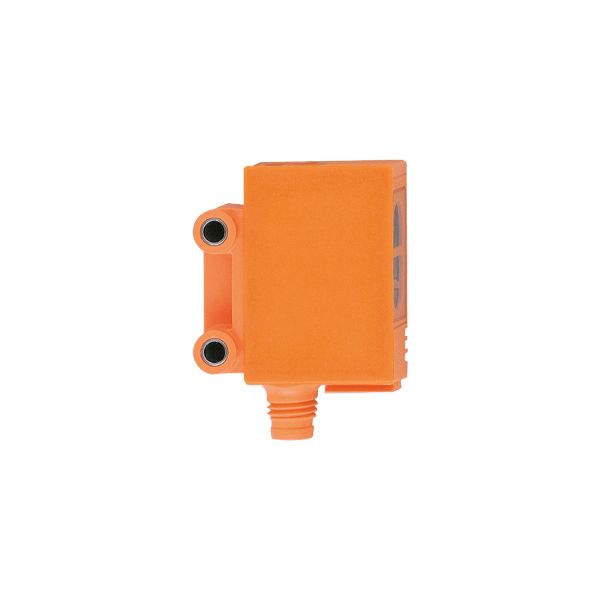

OJH200 - efector200-OJH-HPKG/SO/AS

Code: OJH200

Particularly compact housing for use where space is restricted
Precise background suppression
Simple alignment due to visible red light
Ready for operation immediately thanks to fixed setting
Fast mounting by means of mounting holes with robust stainless steel sleeve

Product characteristics

Type of light	red light
Housing	rectangular

Application

Special feature	Background suppression
Function principle	Diffuse reflection sensor

Electrical data

Operating voltage [V]	10...30 DC
Current consumption [mA]	25
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	660

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	200
Switching frequency DC [Hz]	1000
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [mm]	< 100; (fixed)
Range adjustable	no
Max. light spot diameter [mm]	13
Light spot dimensions refer to	at maximum range
Background suppression available	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 67

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

551

Mechanical data

Weight [g]

15.7

Housing

rectangular

Dimensions [mm]

35 x 11 x 24

Materials

ABS; SEPS

Lens material

PMMA

Lens alignment

side lens

Displays / operating elements

Display

switching status

1 x LED, yellow

Remarks

operating voltage "supply class 2" according to cULus

Pack quantity

1 pcs.

Electrical connection

Connection	Connector: 1 x M8; coding: A
