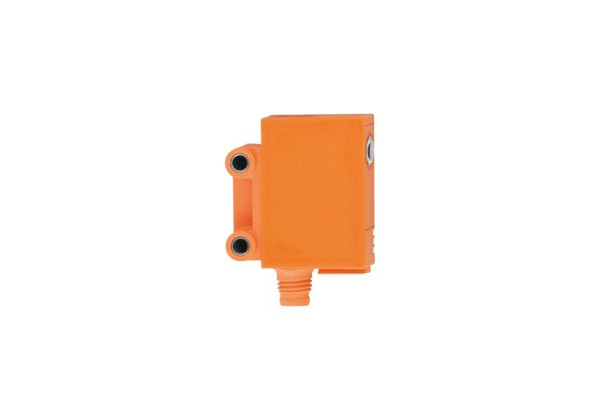

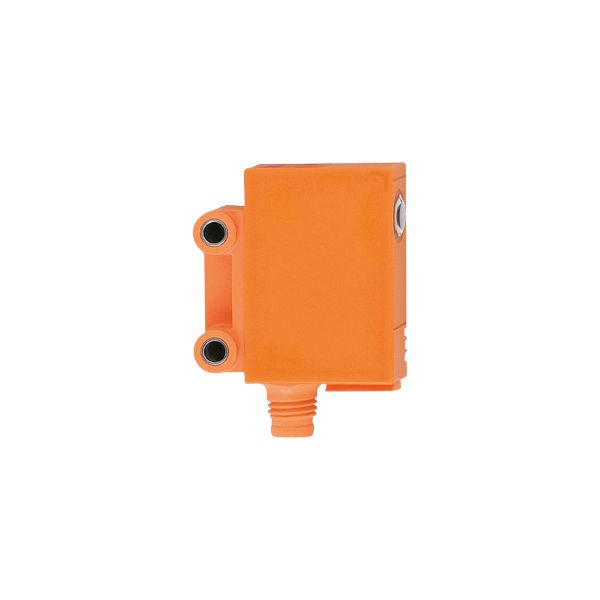

OJS200 - efector200-OJS-OOKG/SO/AS
Brand: IFM Electronic
Code: OJS200
- Particularly compact housing for use where space is restricted
- Very long range
- Simple alignment due to visible red light
- Ready for operation immediately thanks to fixed setting
- Fast mounting by means of mounting holes with robust stainless steel sleeve
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Function principle | Through-beam sensor |
|---|
Electrical data
| Operating voltage [V] | 10...30 DC |
|---|---|
| Current consumption [mA] | < 30 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
Detection zone
| Transmitter / receiver | transmitter |
|---|---|
| Range [m] | 0...10 |
| Range adjustable | no |
| Max. light spot diameter [mm] | 1000 |
| Light spot dimensions refer to | at maximum range |
Operating conditions
| Ambient temperature [°C] | -25...60 |
|---|---|
| Protection | IP 67 |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| MTTF [years] | 2230 |
Mechanical data
| Weight [g] | 16.6 | |
|---|---|---|
| Housing | rectangular | |
| Dimensions [mm] | 35 x 11 x 24 | |
| Materials | ABS; SEPS | |
| Lens material |
| |
| Lens alignment | side lens |
Displays / operating elements
| Display |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M8; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OJS200-01 — 13.04.2023 —
