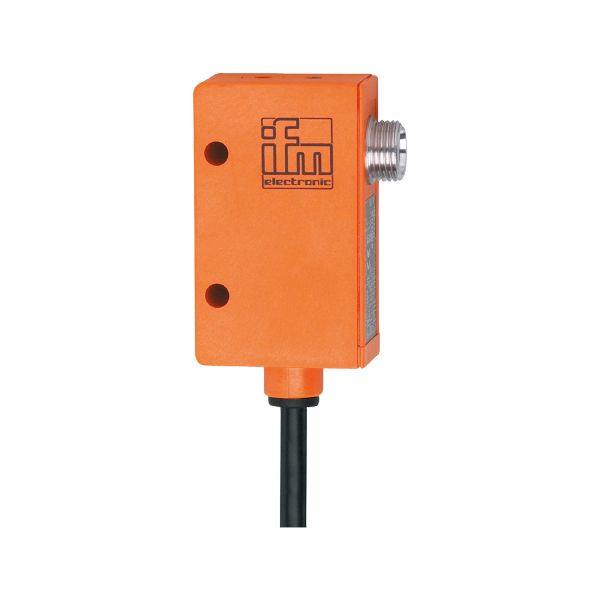

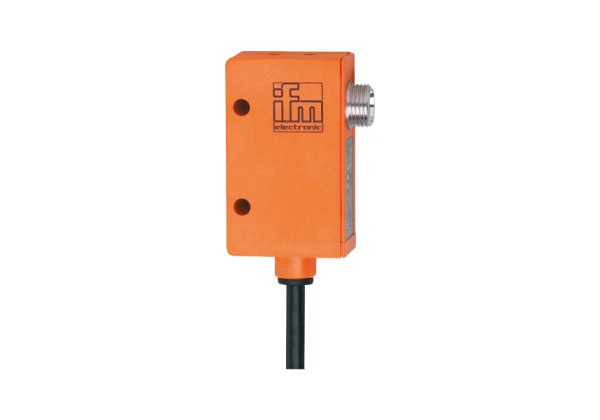

OK5003 - efector200-OKF-FPKG/6M

Code: OK5003

Operation as through-beam sensor or diffuse reflection sensor
Intuitive setting of the sensitivity via potentiometer
Programmable light-on/dark-on mode
Compact housing for use where space is restricted
Clearly visible LED display for checking the switching status

Product characteristics

Type of light	red light
Housing	rectangular

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	30; ((24 V))
Protection class	III
Reverse polarity protection	yes
Type of light	red light
Wave length [nm]	660

Outputs

Electrical design	PNP
Output function	light-on/dark-on mode; (programmable)
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	120
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [m]	0...0.12; (Through-beam sensor)
Range [mm]	0...40; (Diffuse reflection sensor)
Range adjustable	yes

Operating conditions

Ambient temperature [°C]	-25...60
Protection	IP 65

Tests / approvals

EMC

EN 60947-5-2
EN 55011	class B

MTTF [years]

529

Mechanical data

Weight [g]	290
Housing	rectangular
Dimensions [mm]	50 x 19 x 35
Materials	PPO modified
Lens alignment	side lens

Displays / operating elements

Display

switching status

1 x LED, yellow

Accessories

Items supplied

screwdrivers

screws: 2 x M4 x 25

washers: 2

spring washers: 2

Nuts: 2

Remarks

light-on mode corresponds to the NC output function for through-beam fibre optics

corresponds to the NO output function for diffuse-reflection fibre optics

dark-on mode corresponds to the NO output function for through-beam fibre optics

corresponds to the NC output function for diffuse-reflection fibre optics

Pack quantity

1 pcs.

Electrical connection

Connection	Cable: 6 m, PVC; 4 x 0.34 mm²
