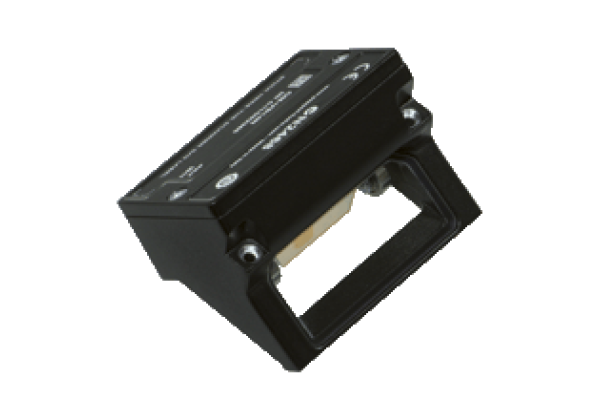

oscillating mirror OM-VB14N
Brand: Pepperl+Fuchs
Code: OM-VB14N
oscillating mirror for the VB14N barcode scanner series
Datasheet excerpt: Technical data of OM-VB14N
| Product Description |
|---|
| oscillating mirror for the VB14N barcode scanner series |
| General specifications | ||
|---|---|---|
| Reading angle | 10... 40 ° , adjustable | |
| Nominal ratings | ||
| Oscillator frequency | 0.5... 4 Hz , adjustable | |
| Electrical specifications | ||
| Operating voltage | 10... 30 V DC | |
| Operating current | max. 40 mA @ 10 V DC | |
| Ambient conditions | ||
| Relative humidity | 90 % , noncondensing | |
| Mechanical specifications | ||
| Degree of protection | IP65 (with correct installation on the barcode scanner) | |
| Connection | Connector , 4-pin | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280192 |
| ECLASS 12.0 | 27280192 |
| ECLASS 11.0 | 27280192 |
| ECLASS 10.0.1 | 27280192 |
| ECLASS 9.0 | 27280192 |
| ECLASS 8.0 | 27319290 |
| ECLASS 5.1 | 27310290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 43211711 |
