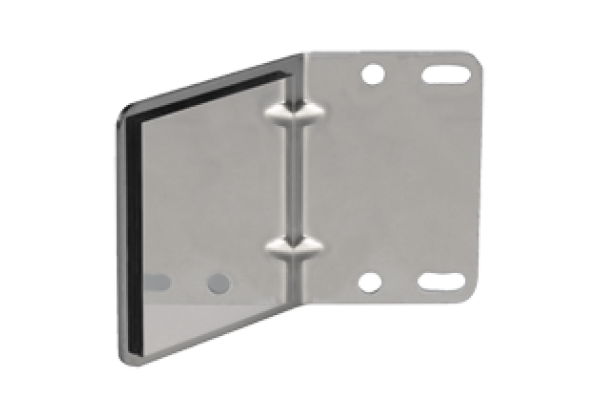

Accessory photo OMH-R1000-03
Brand: Pepperl+Fuchs
Code: OMH-R1000-03
Deviation mirror
Datasheet excerpt: Technical data of OMH-R1000-03
| Product Description |
|---|
| Deviation mirror |
| Nominal ratings | ||
|---|---|---|
| Repeat accuracy | The repeating accuracy of the device used does not change. | |
| Measurement accuracy | ||
| Accuracy | ± 1 mm (This fault is added to the fault in the device used) | |
| Mechanical specifications | ||
| Material | high-grade steel, deflector mirror: glass | |
| Mass | approx. 165 g | |
| Mounting | sensor Mounting accessories included | |
| Suitable series | ||
| Series | R1000 | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272891 |
| ECLASS 12.0 | 27272891 |
| ECLASS 11.0 | 27272891 |
| ECLASS 10.0.1 | 27272891 |
| ECLASS 9.0 | 27272891 |
| ECLASS 8.0 | 27272891 |
| ECLASS 5.1 | 27272891 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121551 |
