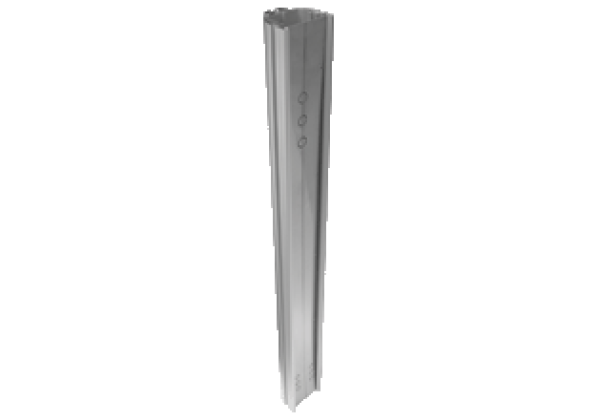

Accessories Safety OMH-SLCT-110-1500
Brand: Pepperl+Fuchs
Code: OMH-SLCT-110-1500
Eight grooves for mounting photoelectric sensors or accessories, three on the inside and five on the outside, Corner mounting of photoelectric sensors with a directional difference of 90°, Cover prepared for indicator light mounting, Rear panel prepared for 3 sensors and 6 cable glands
Datasheet excerpt: Technical data of OMH-SLCT-110-1500
| Product Description |
|---|
| Mounting base for floor mounting with rear panel and cover plate |
| General specifications | ||
|---|---|---|
| Setting angle | ± 5 ° with product OMH-SLCT-200 | |
| Tilting angle | ± 2.5 ° with product OMH-SLCT-200 | |
| Ambient conditions | ||
| Ambient temperature | -40... 80 °C (-40... 176 °F) | |
| Storage temperature | -40... 80 °C (-40... 176 °F) | |
| Relative humidity | 80 % , noncondensing | |
| Mechanical specifications | ||
| Housing length L | 1480 mm | |
| Material | ||
| Housing | anodized aluminum , Steel | |
| Mass | approx. 8.8 kg | |
| General information | ||
| Scope of delivery | Mounting base, back plane, cover plate The three fillister head screws for the cover plate are supplied with the floor mount | |
| Suitable series | ||
| Safety Series | SLCT / SLCS | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27272792 |
| ECLASS 12.0 | 27272792 |
| ECLASS 11.0 | 27272792 |
| ECLASS 10.0.1 | 27272792 |
| ECLASS 9.0 | 27272792 |
| ECLASS 8.0 | 27270990 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121528 |
