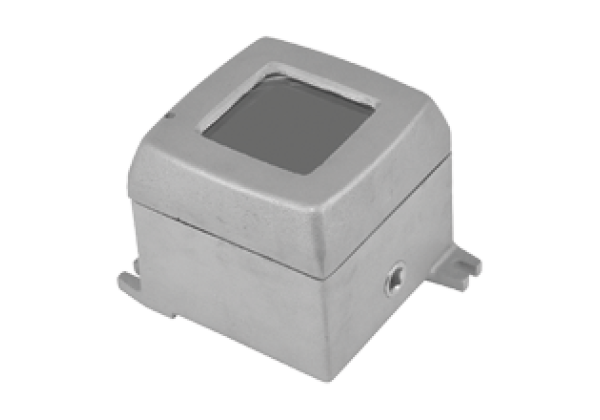

Accessory photo OMH-VDM28-CID1
Brand: Pepperl+Fuchs
Code: OMH-VDM28-CID1
Protective enclosure, Explosion-proof housing, Approved for Class I, Groups C, D, Approved for Class II, Groups E, F and G, Internal terminal block and 4-pin M12 plug angled
Datasheet excerpt: Technical data of OMH-VDM28-CID1
| Product Description |
|---|
| Protective enclosure |
| General specifications | ||
|---|---|---|
| Accessories provided | ||
| Approvals and certificates | ||
| UL approval | Class I, Division 1, Groups C, D | |
| Ambient conditions | ||
| Ambient temperature | -25... 70 °C (-13... 158 °F) | |
| Storage temperature | -40... 85 °C (-40... 185 °F) | |
| Mechanical specifications | ||
| Housing width | 157 mm | |
| Housing height | 140 mm | |
| Degree of protection | NEMA Type 4, 7, 9 | |
| Connection | Terminals | |
| Material | ||
| Housing | diecast aluminum | |
| Mass | approx. 5896 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27270992 |
| ECLASS 12.0 | 27270992 |
| ECLASS 11.0 | 27270992 |
| ECLASS 10.0.1 | 27270992 |
| ECLASS 9.0 | 27270992 |
| ECLASS 8.0 | 27270990 |
| ECLASS 5.1 | 27279290 |
| ETIM 9.0 | EC003015 |
| ETIM 8.0 | EC003015 |
| ETIM 7.0 | EC003015 |
| ETIM 6.0 | EC003015 |
| ETIM 5.0 | EC003015 |
| UNSPSC 12.1 | 39121528 |
