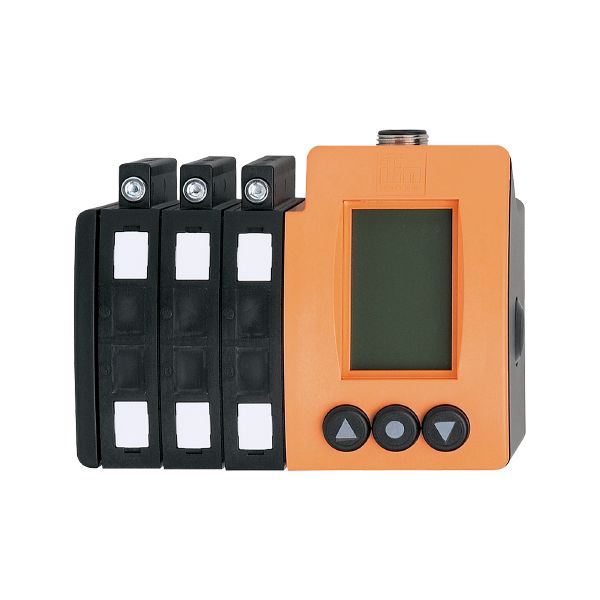

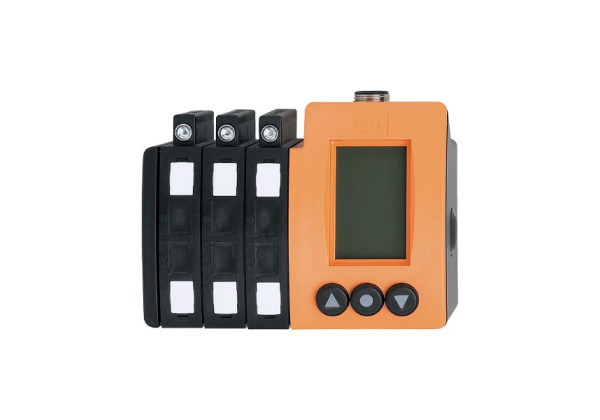

OO5002 - efector200-OOF-FPKG/M16/KL6
Brand: IFM Electronic
Code: OO5002
- For applications in which several fibre optics are required for position detection
- Compact housing for use where space is restricted
- For the precise detection of small parts
- Display with graphic capability for easy set-up
- For operation with inexpensive acrylic fibre optics
Product characteristics
| Type of light | red light |
|---|---|
| Housing | rectangular |
Application
| Special feature | Function check output |
|---|
Electrical data
| Operating voltage [V] | 12...36 DC |
|---|---|
| Current consumption [mA] | 50; ((24 V)) |
| Max. power consumption [VA] | 1.2 |
| Protection class | III |
| Reverse polarity protection | yes |
| Type of light | red light |
| Wave length [nm] | 630 |
Outputs
| Electrical design | PNP | |
|---|---|---|
| Output function | light-on/dark-on mode; (programmable) | |
| Max. voltage drop switching output DC [V] | 2 | |
| Function check output | yes | |
| Max. current load for function check output [mA] | 200 | |
| Permanent current rating of switching output DC [mA] | 200 | |
| Switching frequency DC [Hz] | 1000 | |
| Notes on switching frequency [Hz] |
| |
| Short-circuit protection | yes | |
| Type of short-circuit protection | pulsed | |
| Overload protection | yes | |
| Time function [s] | 0.001...0.1 |
Detection zone
| Range [m] | < 3.8; (Through-beam sensor) |
|---|---|
| Range [mm] | 0...300; (Diffuse reflection sensor) |
| Range adjustable | yes |
Software / programming
| Parameter setting options | automatic and manual switch point setting; logic functions AND, OR; second switch point |
|---|
Operating conditions
| Ambient temperature [°C] | -20...60 |
|---|---|
| Protection | IP 65 |
Tests / approvals
| EMC |
|
|---|
Mechanical data
| Weight [g] | 521 |
|---|---|
| Housing | rectangular |
| Dimensions [mm] | 76.5 x 92.4 x 70.7 |
| Number of channels | 6 |
| Fibre optic connection | FE-11 / FT-11 |
| Materials | housing: ABS; display window: PMMA; LED window: SEPS; cover: diecast zinc plastic coated (PA) |
| Lens alignment | side lens |
Displays / operating elements
| Display |
| ||||
|---|---|---|---|---|---|
| Electronic lock | yes |
Accessories
| Items supplied |
|
|---|
Remarks
| Remarks |
| |
|---|---|---|
| Pack quantity | 1 pcs. |
Electrical connection
| Connection | Connector: 1 x M16 |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OO5002-01 — 13.04.2023 —
