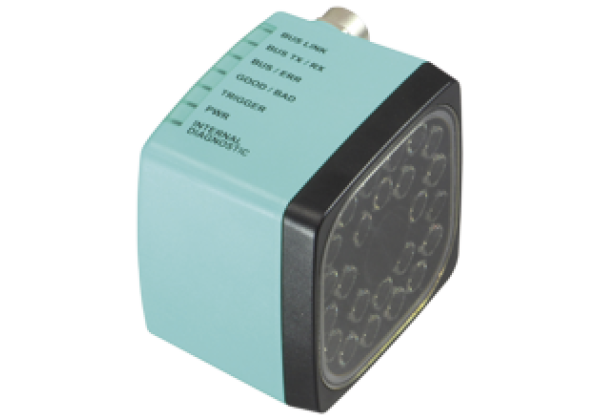

Stationary read device OPC120P-F201-B17
Brand: Pepperl+Fuchs
Code: OPC120P-F201-B17
Optical Print Inspector, reading of Data Matrix codes, PROFINET, speeds up to 10 m/sec, polarization filter
Datasheet excerpt: Technical data of OPC120P-F201-B17
| Product Description |
|---|
| Optical Print Inspector, reading of Data Matrix codes, PROFINET, speeds up to 10 m/sec, polarization filter |
| General specifications | ||
|---|---|---|
| Light type | Integrated LED lightning (white) | |
| Polarization filter | yes | |
| Symbologies | Data Matrix | |
| Read distance | 70... 180 mm Nominal distance: 120 mm | |
| Reading field | Minimum read field: 28 mm x 45 mm Read field at nominal distance: 45 mm x 70 mm Maximum read field: 65 mm x 105 mm | |
| Modul size | Minimum module size: 0.2 mm | |
| Evaluation frequency | up to 50 Hz | |
| Target velocity | triggered max. 10 m/s | |
| Data Matrix | ||
| Symbol size | rectangular up to 144 x 144 modules rectangular up to 16 x 48 modules | |
| Data format | ASCII, C40, Text, X12, Edifact, Base 256 , all according to ISO 646 | |
| Orientation | omnidirectional | |
| Nominal ratings | ||
| Camera | ||
| Type | CMOS , Global shutter | |
| Number of pixels | 752 x 480 pixels | |
| Gray scale | 256 | |
| Image recording | real-time , Program-controlled or triggered externally | |
| Functional safety related parameters | ||
| MTTFd | 40.5 a | |
| Mission Time (TM) | 8 a | |
| Diagnostic Coverage (DC) | 0 % | |
| Indicators/operating means | ||
| LED indication | 7 LEDs (communication, alignment aid, status information) | |
| Electrical specifications | ||
| Operating voltage | 24 V DC ± 15% , PELV | |
| No-load supply current | max. 300 mA | |
| Power consumption | 6 W | |
| Interface | ||
| Interface type | 100 BASE-TX | |
| Protocol | PROFINET IO Real-Time (RT) Conformance class A | |
| Transfer rate | 100 MBit/s | |
| Interface 2 | ||
| Interface type | USB Service | |
| Input | ||
| Input voltage | to be applied externally 24 V ± 15% PELV | |
| Number/Type | Trigger | |
| Input current | approx. 10 mA at 24 V DC | |
| Switching threshold | low: < 10 V, high: > 15 V | |
| Cable length | max. 30 m | |
| Output | ||
| Switching type | PNP | |
| Switching voltage | to be applied externally 24 V ± 15 % PELV | |
| Switching current | 100 mA each output | |
| Cable length | max. 30 m | |
| Compliance with standards and directives | ||
| Standard conformity | ||
| Noise immunity | EN 61326-1:2006 | |
| Emitted interference | EN 61000-6-4:2007/A1:2011 | |
| Degree of protection | EN 60529 | |
| Photobiological safety | Risk group 1 according to IEC 62471 | |
| Approvals and certificates | ||
| UL approval | cULus Listed, General Purpose, Class 2 Power Source, Type 1 enclosure | |
| CCC approval | CCC approval / marking not required for products rated ≤36 V | |
| Approvals | CE | |
| Ambient conditions | ||
| Ambient temperature | 0... 45 °C (32... 113 °F) | |
| Storage temperature | -20... 85 °C (-4... 185 °F) | |
| Relative humidity | 90 % , noncondensing | |
| Mechanical specifications | ||
| Degree of protection | IP67 | |
| Connection | 8-pin, M12x1 connector, standard (supply+IO) , 4-pin, M12x1 socket, D-coded (LAN) , 4-pin, M12x1 socket, D-coded (LAN) | |
| Material | ||
| Housing | PC/ABS | |
| Optical face | Plastic pane | |
| Installation | 4 x M6 threading | |
| Mass | approx. 200 g | |
Classifications
| System | Classcode |
|---|---|
| ECLASS 13.0 | 27280103 |
| ECLASS 12.0 | 27280103 |
| ECLASS 11.0 | 27280103 |
| ECLASS 10.0.1 | 27280103 |
| ECLASS 9.0 | 27280103 |
| ECLASS 8.0 | 27280103 |
| ECLASS 5.1 | 27280103 |
| ETIM 9.0 | EC002999 |
| ETIM 8.0 | EC002999 |
| ETIM 7.0 | EC002999 |
| ETIM 6.0 | EC002999 |
| ETIM 5.0 | EC002999 |
| UNSPSC 12.1 | 43211701 |
