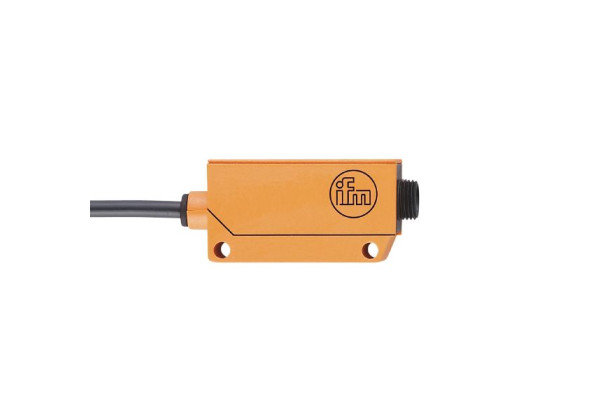

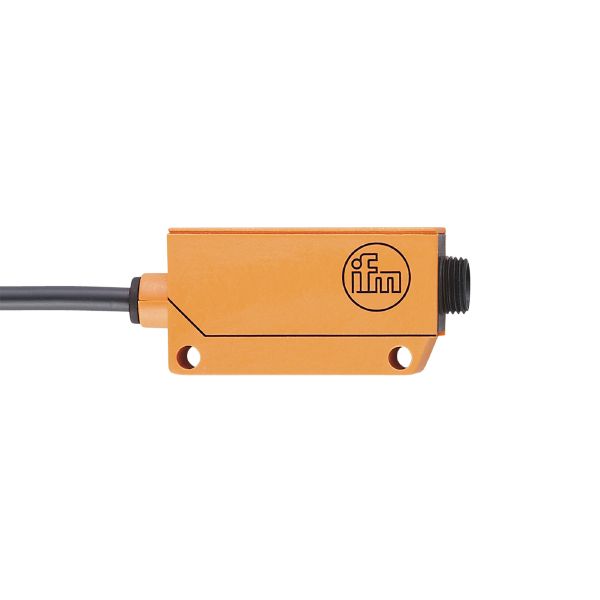

OU5001 - efector200-OUF-HPKG

Code: OU5001

Simple connection of the fibre optics to an amplifier
Operation with inexpensive acrylic fibre optics or high-quality glass fibre optics
Clearly visible indication of the switching status
Intuitive setting of the sensitivity via potentiometer
Compact housing for use where space is restricted

Product characteristics

Type of light	infrared light
Housing	rectangular

Electrical data

Operating voltage [V]	10...36 DC
Current consumption [mA]	35; ((24 V))
Protection class	II
Reverse polarity protection	yes
Type of light	infrared light
Wave length [nm]	880

Outputs

Electrical design	PNP
Output function	light-on mode
Max. voltage drop switching output DC [V]	2.5
Permanent current rating of switching output DC [mA]	250
Switching frequency DC [Hz]	100
Short-circuit protection	yes
Type of short-circuit protection	pulsed
Overload protection	yes

Detection zone

Range [m]	< 0.12; (Through-beam sensor)
Range [mm]	< 40; (Diffuse reflection sensor)
Range adjustable	yes

Operating conditions

Ambient temperature [°C]	-25...80
Protection	IP 65

Tests / approvals

EMC

EN 60947-5-2

MTTF [years]

653

Mechanical data

Weight [g]	152
Housing	rectangular
Dimensions [mm]	28 x 16 x 56
Materials	PPO modified
Lens alignment	side lens

Displays / operating elements

Display

switching status

1 x LED, yellow

Accessories

Items supplied

Angle bracket: 1, E20211

screwdrivers

Remarks

light-on mode corresponds to the NC output function for through-beam fibre optics

corresponds to the NO output function for diffuse-reflection fibre optics

Pack quantity

1 pcs.

Electrical connection

Connection	Cable: 2 m, PVC; 3 x 0.34 mm²

Diagrams and graphs

excess gain graph

ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — We reserve the right to make technical alterations without prior notice. — EN-GB — OU5001-01 — 13.04.2023 —
