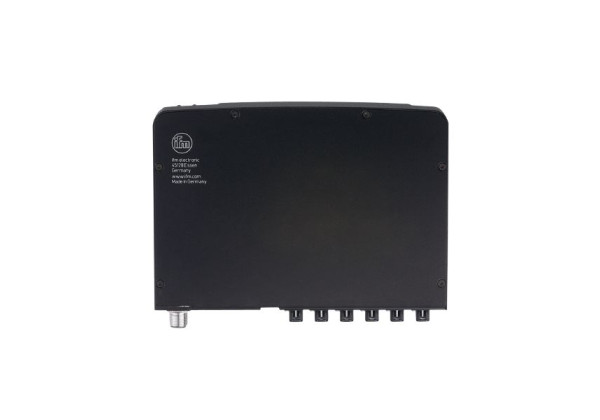

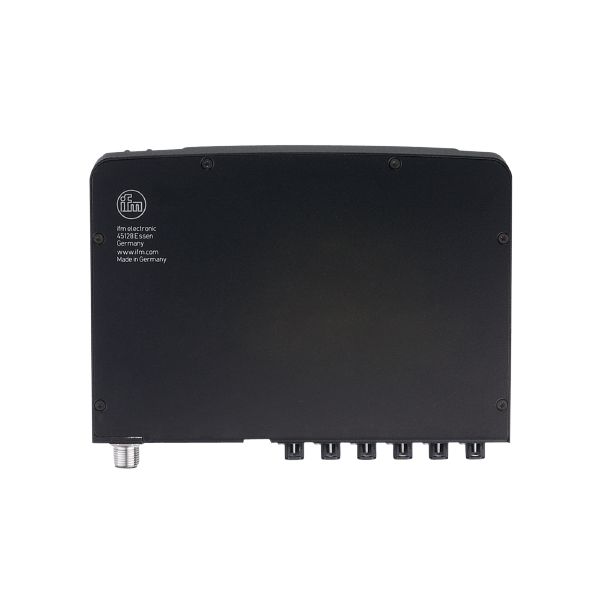

OVP800 Video processing unit (VPU) OVPAA/RO/E0/E1/NJ TX2/4GB

Code: OVP800

Application

Application	Industrial imaging

Electrical data

Operating voltage [V]	19.2...28.8 DC
Max. current consumption [mA]	2710; (310 + (n x 800) n = number of cameras)
Power consumption [W]	33.2; (7,4 + n x ((FPS x 0,32) + 2,2); n = number of cameras; FPS = camera frame rate)

Interfaces

Number of CAN interfaces	1
Number of Ethernet interfaces	2
Number of USB interfaces	2

CAN

Protocol	free protocol

Ethernet

Transmission standard

1GBase-T

Transmission rate

1000 MBit/s

Protocol

TCP/IP

Factory settings

IP address: 192.168.0.69

subnet mask: 255.255.255.0 (Class C)

gateway IP address: 192.168.0.201

MAC address: see type label

Sensor interface

Transmission standard

FPD-Link

Connector type

HFM (Mini-FAKRA)

Note on interfaces

maximum number of cameras: see operating instructions

USB

Connector type	Mini-USB; type A
Version	2.0; 3.0

Operating conditions

Ambient temperature [°C]	-10...40
Storage temperature [°C]	-40...85
Protection	IP 50

Tests / approvals

EMC

EN IEC 61000-6-4	radiation of interference / residential, commercial and light-industrial environments
EN IEC 61000-6-2	immunity / industrial environments

Shock resistance

DIN EN 60068-2-27	50 g / (11 ms) not repetitive
DIN EN 60068-2-27	40 g / (6 ms) repetitive

Vibration resistance

DIN EN 60068-2-6	2 g / (10...150 Hz)
DIN EN 60068-2-64	2.3 g RMS / (10...500 Hz)

Electrical protection

DIN EN 61010-2-201

electrical supply only via PELV circuits

Mechanical data

Weight [g]	1338.3
Dimensions [mm]	126.5 x 29 x 180.4
Materials	housing: aluminium
Tightening torque [Nm]	< 5.5

Hardware

Processor	CPU: Dual-Core NVIDIA Denver 2 64 Bit ; ARM Cortex A57; GPU: NVIDIA Pascal 256 CUDA Cores (1,3 TFLOPs) SOM: Nvidia Jetson TX2 4GB Module
Working memory	4GB 128-bit LPDDR4, 1600 MHz - 51.2 GB/s
Mass storage	16GB eMMC 5.1 Flash

Remarks

Pack quantity	1 pcs.

Electrical connection - USB socket

	Connector: 1 x mini USB interface

Electrical connection - USB socket Typ A

	Connector: 1 x Typ A

Electrical connection - power supply / CAN

	Connector: 1 x M12; coding: A

Electrical connection - sensor interface

	Connector: 6 x HFM (Mini-FAKRA) (AMK12A-1M4Z5-A)

Other data

Connection

	Port 0	Port 1	Port 2	Port 3	Port 4	Port 5
example 1	camera 1 (3D)	camera 2 (3D)	camera 1 (2D)	camera 2 (2D)	camera 3 (3D)	camera 4 (3D)
example 2	camera 1 (2D)	camera 2 (2D)	camera 1 (3D)	camera 2 (3D)	camera 3 (2D)	camera 4 (2D)
example 3	camera 1 (3D)	camera 2 (3D)	camera 3 (3D)	camera 4 (3D)	camera 5 (3D)	camera 6 (3D)

ports 0 and 1, 2 and 3, 4 and 5 must be assigned to the same type of image sensor.
please note the different 3D image sensor types 38k and VGA when connecting the cameras.
