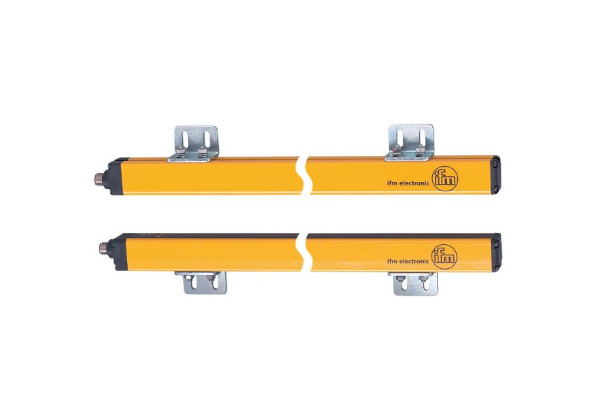

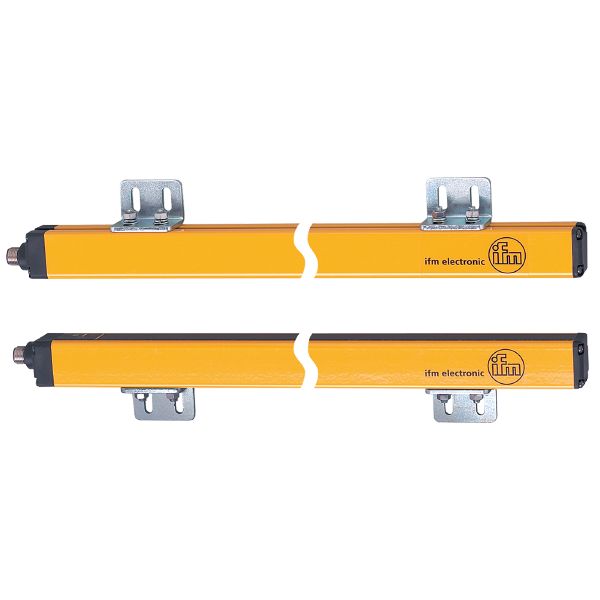

OY067S Safety light curtain OYA1060-40-4-12-P-1
Brand: IFM Electronic
Code: OY067S
- Reliable protection of hazardous areas and gates
- Complies with the requirements of type 4 to IEC 61496
- Wide range selectable on the unit
- Slim, robust design for use in harsh industrial environments
- Easy connection via the tried-and-tested M12 connector
Product characteristics
| Type of light | infrared light |
|---|---|
| Electrical design | PNP |
| Protection | IP 65; IP 67 |
Application
| Protective function | access prevention hand protection |
|---|
Electrical data
| Operating voltage tolerance [%] | 20 |
|---|---|
| Operating voltage [V] | 24 DC |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 2 |
| Type of light | infrared light |
| Wave length [nm] | 950 |
| Current consumption [mA] | 83 |
|---|
| Current consumption [mA] | 42 |
|---|
Outputs
| Electrical design | PNP |
|---|---|
| Number of OSSD outputs | 2 |
| Max. current load per OSSD output [mA] | 400; (24 V) |
| Short-circuit protection | yes |
Detection zone
| Protected area height [mm] | 1060 |
|---|---|
| Resolution (detection capacity d) [mm] | 40 |
| Protection area width (low light intensity) [m] | 0...4 |
| Protection area width (high light intensity) [m] | 3...12 |
Response times
| Response time [ms] | 10 |
|---|
Operating conditions
| Applications | class C to EN 60654-1 weatherproof application |
|---|---|
| Ambient temperature [°C] | -10...55 |
| Storage temperature [°C] | -20...70 |
| Max. relative air humidity [%] | 95 |
| Protection | IP 65; IP 67 |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| Shock resistance |
| ||
| Vibration resistance |
|
Safety classification
| ESPE type (IEC 61496-1) | 4 | |||
|---|---|---|---|---|
| Complies with the requirements |
| |||
| Mission time TM [h] | 175200 | |||
| PFH [1/h] | 1,2E-08 |
Mechanical data
| Weight [g] | 3780 |
|---|---|
| Dimensions [mm] | 1113 x 28 x 30 |
| Materials | housing: aluminium; front pane: PC |
| Length L [mm] | 1113 |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - receiver
| Connection | Connector: 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 0.34 mm² |
|---|
Electrical connection - transmitter
| Connection | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — OY067S — 14.03.2022 —
