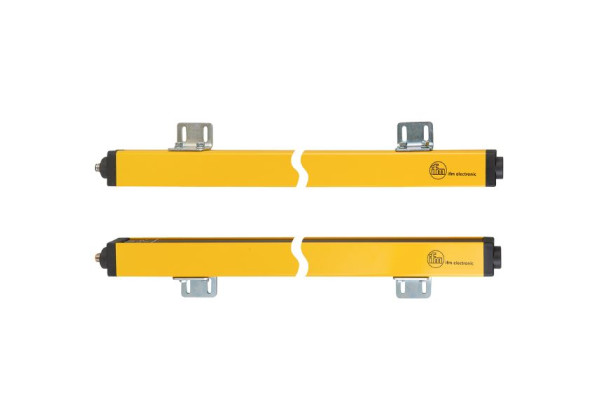

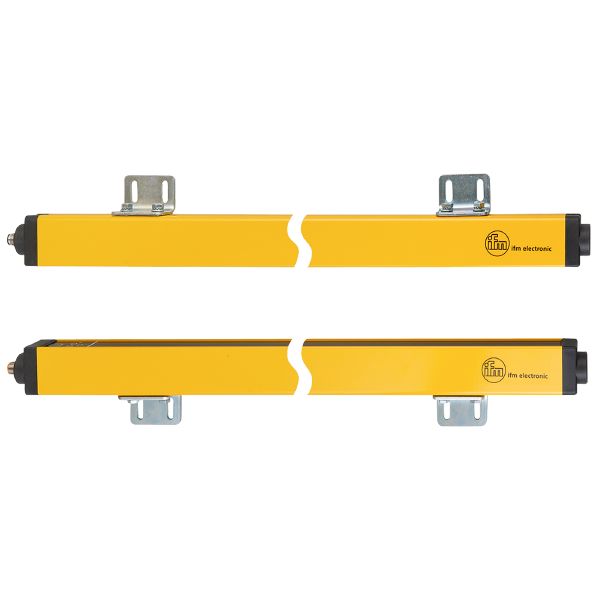

OY808S - efector200-OYA1210-14-4-05-P-1-B
Brand: IFM Electronic
Code: OY808S
- With floating blanking
- Reliable protection of hazardous areas and gates
- For the safe material feed on presses in the metal-working and wood-working industries
- Complies with the requirements of type 4 to IEC 61496
- Wide range selectable on the unit
Product characteristics
| Type of light | infrared light |
|---|---|
| Electrical design | PNP |
| Protection | IP 65 |
Application
| Protective function | access prevention finger protection |
|---|
Electrical data
| Operating voltage tolerance [%] | 20 |
|---|---|
| Operating voltage [V] | 24 DC |
| Protection class | III |
| Reverse polarity protection | yes |
| Power-on delay time [s] | < 18 |
| Type of light | infrared light |
| Wave length [nm] | 950 |
| Current consumption [mA] | 125 |
|---|
| Current consumption [mA] | 83 |
|---|
Outputs
| Electrical design | PNP |
|---|---|
| Number of OSSD outputs | 2 |
| Max. current load per OSSD output [mA] | 500; (24 V) |
| Short-circuit protection | yes |
Detection zone
| Protected area height [mm] | 1210 |
|---|---|
| Resolution (detection capacity d) [mm] | 14 |
| Protection area width (low light intensity) [m] | 0...3 |
| Protection area width (high light intensity) [m] | 0...5 |
| Floating blanking | yes |
Response times
| Response time [ms] | 19 |
|---|
Operating conditions
| Applications | class C to EN 60654-1 weatherproof application |
|---|---|
| Ambient temperature [°C] | 0...55 |
| Max. relative air humidity [%] | 95 |
| Protection | IP 65 |
Tests / approvals
| EMC |
| ||
|---|---|---|---|
| Shock resistance |
| ||
| Vibration resistance |
|
Safety classification
| ESPE type (IEC 61496-1) | 4 | |||
|---|---|---|---|---|
| Complies with the requirements |
| |||
| Mission time TM [h] | 175200 | |||
| PFH [1/h] | 2,1E-08 |
Mechanical data
| Weight [g] | 6238.6 |
|---|---|
| Dimensions [mm] | 1311 x 35 x 45 |
| Materials | housing: aluminium; front pane: PC |
| Length L [mm] | 1311 |
Displays / operating elements
| Display |
|
|---|
Accessories
| Items supplied |
|
|---|
Remarks
| Pack quantity | 1 pcs. |
|---|
Electrical connection - receiver
| Connection | Connector: 1 x M12; coding: A; Maximum cable length: 100 m; for wire cross-section 0.34 mm² |
|---|
Electrical connection - transmitter
| Connection | Connector: 1 x M12; coding: A |
|---|
ifm electronic gmbh • Friedrichstraße 1 • 45128 Essen — EN-GB — OY808S — 14.03.2022 —
